TRUMPF Style Tooling European Style Tooling is a high-performance bending tool developed by Fierte in compliance with European standards, specifically designed for TRUMPF series press brakes. Integrating advanced safety design and precision manufacturing technology, this product solves the compatibility and safety issues of imported TRUMPF equipment matching domestic tools, and is widely used in high-end manufacturing fields such as aerospace, medical devices, and luxury household appliances.

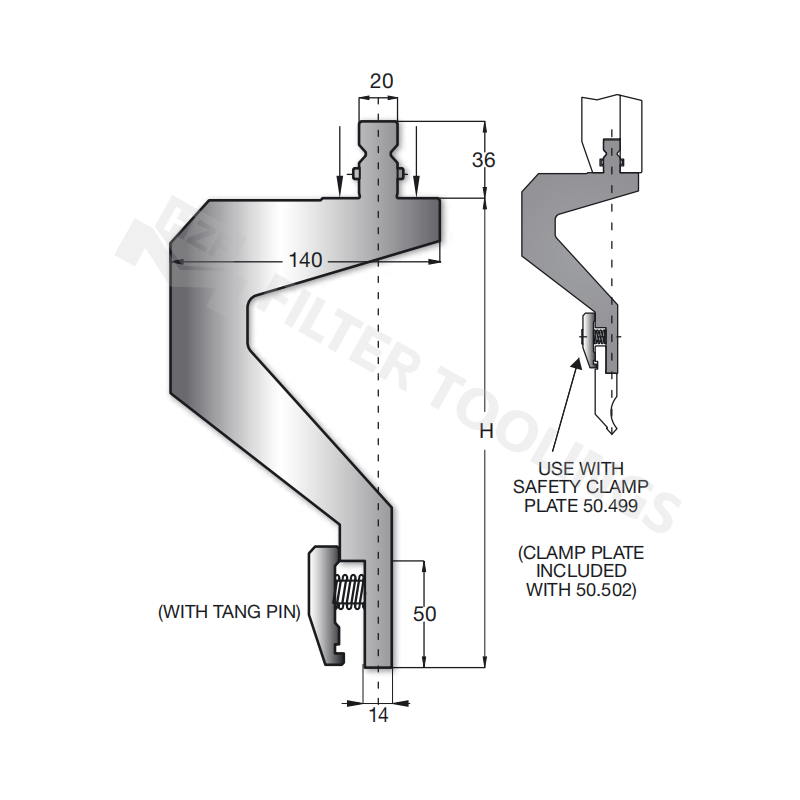

TRUMPF Style Tooling European Style Tooling adopts European standard dimensions, with key parameters including: 20mm tool width (consistent with TRUMPF’s original tool specifications), 1mm precision tolerance (ensuring no installation gaps), 140mm effective working stroke (adapting to large-depth bending). The most prominent feature is the integrated SAFETY CLAMP, which is matched with PLATE 50.499 (clamp base plate) and CLAMP PLATE WITH TANG PIN (0000 000 50); PLATE 50.502 is also included to enhance the stability of the clamp, preventing tool displacement during high-pressure processing.
To meet European environmental standards, TRUMPF Style Tooling European Style Tooling offers three eco-friendly surface treatment options:
Blackening: Uses non-toxic blackening agents, complying with EU RoHS standards.
Sandblasting: Adopts high-purity quartz sand, ensuring no heavy metal residues on the surface.
Sandblasting + blackening: Combines environmental protection and performance, suitable for export-oriented enterprises.
The product is packaged in a Wooden Box with a moisture-proof layer (meeting EU packaging waste regulations) and a clear label indicating product model, batch number, and compliance certificates (such as CE).
TRUMPF Style Tooling European Style Tooling is made of 42CrMo and C45 steels, which are consistent with the material standards of TRUMPF original tools. The tool’s interface is precision-machined to match the slot size of TRUMPF press brakes (error ≤0.02mm), avoiding installation difficulties caused by dimensional mismatches. Additionally, the tool’s weight is optimized to 3.2kg (same as TRUMPF original tools), ensuring no additional load on the press brake’s mechanical arm.
The product undergoes whole body heat treatment with a hardness stabilized at HRC48-50, which is identical to TRUMPF’s original tool hardness, ensuring consistent bending performance. The SAFETY CLAMP adopts a double-locking design: the tang pin (on CLAMP PLATE WITH TANG PIN) inserts into the press brake’s positioning hole, and the clamp plate (PLATE 50.499) presses the tool tightly, preventing tool ejection due to sudden pressure increases during processing.
TRUMPF Style Tooling European Style Tooling supports full compatibility with TRUMPF’s mainstream press brake models, including:
Trumpf/Wila: Suitable for TRUMPF’s TruBend 3000/5000 series, matching Wila’s quick-change systems.
Bystronic/Beyeler: Compatible with Bystronic’s Xpert series (equipped with TRUMPF-compatible adapters).
Colgar type: Matches Colgar’s ECO series, adapting to small-batch flexible production.
Colly type: Suitable for Colly’s M series, ensuring high-precision bending of thin-gauge sheet metal.
Ajial-Axial type: Compatible with Ajial-Axial’s A series, meeting the needs of large-format processing.
Each set of TRUMPF Style Tooling European Style Tooling includes all necessary accessories: SAFETY CLAMP (1 piece), PLATE 50.499 (1 piece), CLAMP PLATE WITH TANG PIN (0000 000 50) (1 piece), PLATE 50.502 (2 pieces), and a EU-standard installation wrench (avoiding the need for customers to purchase special tools).
TRUMPF Style Tooling European Style Tooling fully complies with EU EN 12622 standards (for sheet metal bending tools) and has passed CE certification, enabling seamless export to European markets without additional compliance testing.
The built-in SAFETY CLAMP reduces the risk of tool displacement by 90% compared to traditional tools, protecting operators and equipment safety, and meeting the strict safety requirements of high-end manufacturing enterprises.
Due to precise dimensional matching with TRUMPF equipment, the tool can be installed and used directly without on-site debugging, saving 2-3 hours of setup time for each production line.
The combination of 42CrMo steel and HRC48-50 hardness ensures that the tool can withstand continuous 8-hour heavy-load processing (bending force ≤1000kN) without deformation, maintaining stable precision.
The price of TRUMPF Style Tooling European Style Tooling is only 40% of TRUMPF’s original tools, and the service life is equivalent to that of imported products, helping customers reduce equipment investment costs significantly.
It is mainly designed for TRUMPF press brakes. For non-TRUMPF equipment (such as Bystronic), we can provide custom adapters (additional cost required) to ensure compatibility.
PLATE 50.502 is a pressure-adjusting gasket, which is used to adjust the clamping force of the SAFETY CLAMP—thicker gaskets increase clamping force (for heavy-load processing), while thinner ones reduce force (for light-load processing).
The standard lead time is 18-20 days after receiving the deposit. For customers with urgent export orders, we can provide a 10-day expedited service (subject to production schedule confirmation).
Yes. We can provide REACH-compliant surface treatment (such as non-phosphating blackening) according to customers’ specific environmental certifications (such as REACH, ECOCERT), ensuring compliance with local regulations.
Each tool has a unique serial number (engraved on the handle), which can be verified on Fierte’s official website (www.fierte-tools.com) to confirm product authenticity and warranty information.
