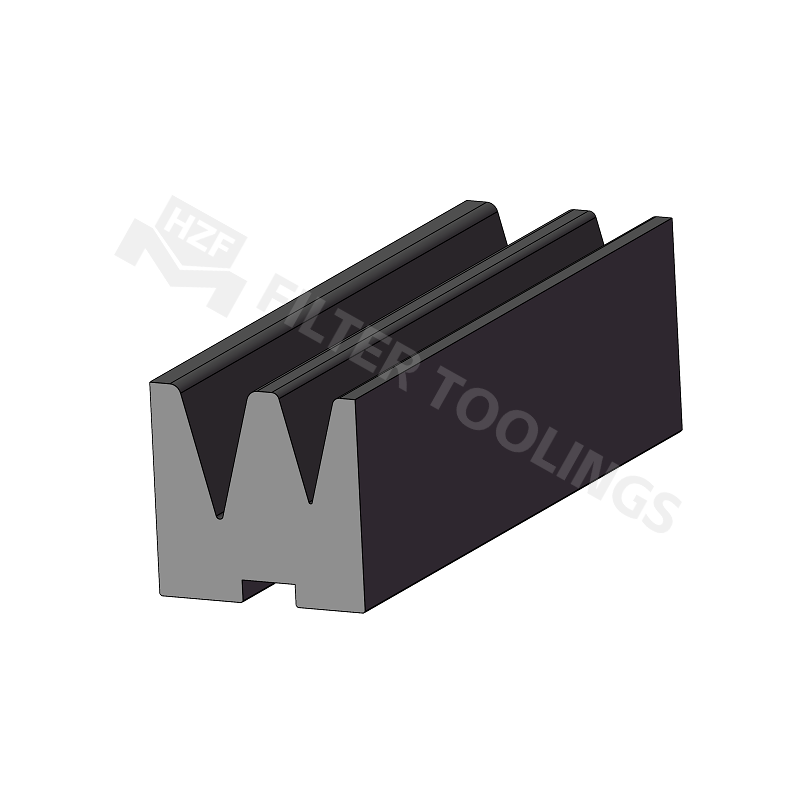

Product 3D image
Product drawing
Fierte, a trusted innovator in bending tools and crowning tables, introduces the Hydraulic Press Brake Molds Standard 2v Dies—a high-performance Dual-V 30° Lower Die designed to deliver precision bending for sheet metal processing. This versatile bottom die for bending machines is engineered to meet the demands of industrial manufacturing, offering consistent accuracy, durability, and flexibility across a wide range of applications. Whether you’re bending light-gauge aluminum for electronics or medium-gauge steel for construction, our 30° Dual-V Die ensures sharp, uniform bends that meet strict quality standards.
The Dual-V 30° Lower Die features a unique dual-V structure (V1, V2) that enables versatile bending operations. The 30° V-angle is optimized for balanced pressure distribution, reducing material deformation and ensuring sharp, accurate bends for sheet metals of varying thicknesses (from 0.5mm to 10mm). This design eliminates the need for multiple single-V dies, saving storage space and increasing production efficiency.
Manufactured from 42CrMo4/42CrMo/C45 steel—a top choice for industrial bending tools—our Hydraulic Press Brake Molds offer exceptional tensile strength, impact resistance, and wear resistance. The steel is carefully selected and inspected to ensure no impurities, preventing cracks or premature failure even under heavy loads.
Every Dual-V 30° Die undergoes rigorous whole-body heat treatment, achieving a hardness rating of HRC48-50. This process penetrates the entire die, not just the surface, ensuring uniform hardness and structural stability. The result is a die that resists deformation, maintains its shape over time, and delivers consistent performance across thousands of bending cycles.
Choose from three durable surface treatments to suit your working environment: blackening, sandblasting, or sandblasting + blackening. Blackening provides a protective oxide layer that resists corrosion; sandblasting creates a textured surface that improves grip and reduces friction; the combined treatment offers maximum protection against rust, wear, and harsh conditions (e.g., outdoor workshops or humid environments).
Our Standard 2v Dies are designed to fit most industry-leading press brake models, including Amada/Promecam, Trumpf/Wila, Bystronic/Beyeler, LVD type, American standard, Gasparini type, and Ajial-Axial type. This universal compatibility means you can upgrade your tooling without replacing your existing press brake, saving time and investment.
Specification Category | Details |
Material | 42CrMo4/42CrMo/C45 High-Quality Steel |
Heat Treatment | Whole Body Heat Treatment, HRC48-50 Hardness |
V-Angle | Dual-V 30° (V1, V2) |
Compatible Sheet Thickness | 0.5mm – 10mm (Depends on Material Type) |
Surface Treatment Options | Blackening, Sandblasting, Sandblasting + Blackening |
Lead Time | 18-20 Days After Receiving Deposit |
Payment Terms | T/T, Western Union |
Packing | Sturdy Wooden Box (Shockproof & Moisture-Proof) |
At Fierte, we recognize that standard tools may not always align with your unique requirements. Our in-house R&D team specializes in designing custom Hydraulic Press Brake Molds, including modified Dual-V 30° Lower Dies, to fit your specific press brake model, workpiece material, and bending applications. Whether you need a non-standard V-angle, adjusted dimensions, or enhanced durability for extreme loads, we can create a solution that meets your exact needs.
The Dual-V 30° Lower Die offers greater versatility—you can switch between two V-grooves (V1, V2) to accommodate different sheet metal thicknesses and bending angles without changing dies. This saves time during production, reduces storage space for multiple tools, and ensures consistent pressure distribution for sharper, more accurate bends.
Yes! Our Hydraulic Press Brake Molds are made from 42CrMo4/42CrMo/C45 steel with HRC48-50 hardness, which is strong enough to bend hard materials like stainless steel, carbon steel, and alloy steel. The whole-body heat treatment ensures the die can withstand the high pressure required for bending these materials without deformation.
Absolutely! Our Dual-V 30° Lower Die is designed to fit most major press brake brands, including Bystronic/Beyeler, Amada/Promecam, Trumpf/Wila, and LVD type. If you have a specific Bystronic model, provide our team with the machine’s specifications, and we’ll confirm compatibility—no custom adapters needed in most cases.
