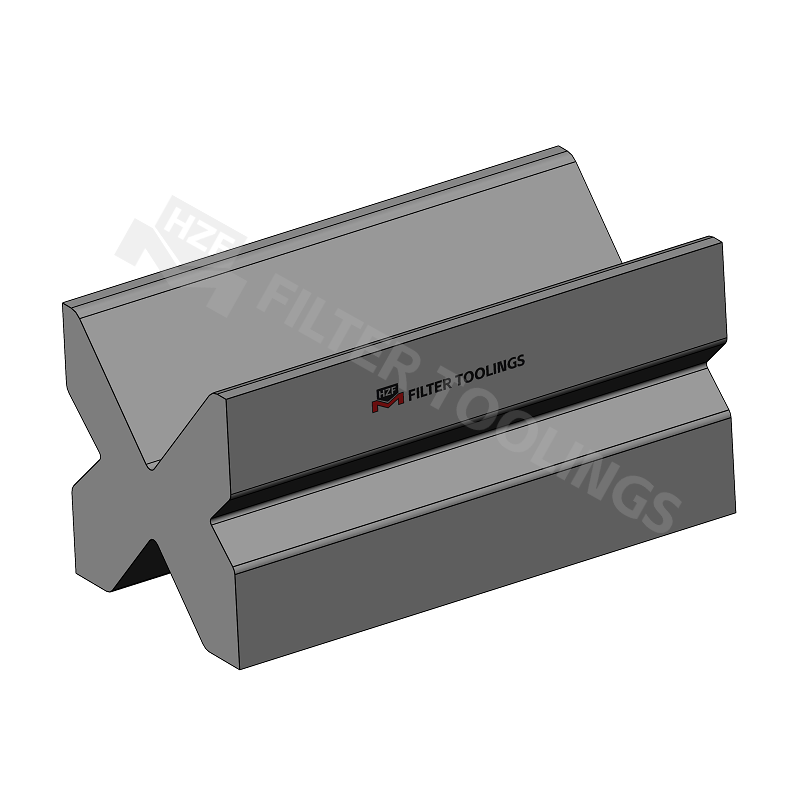

Product 3D image

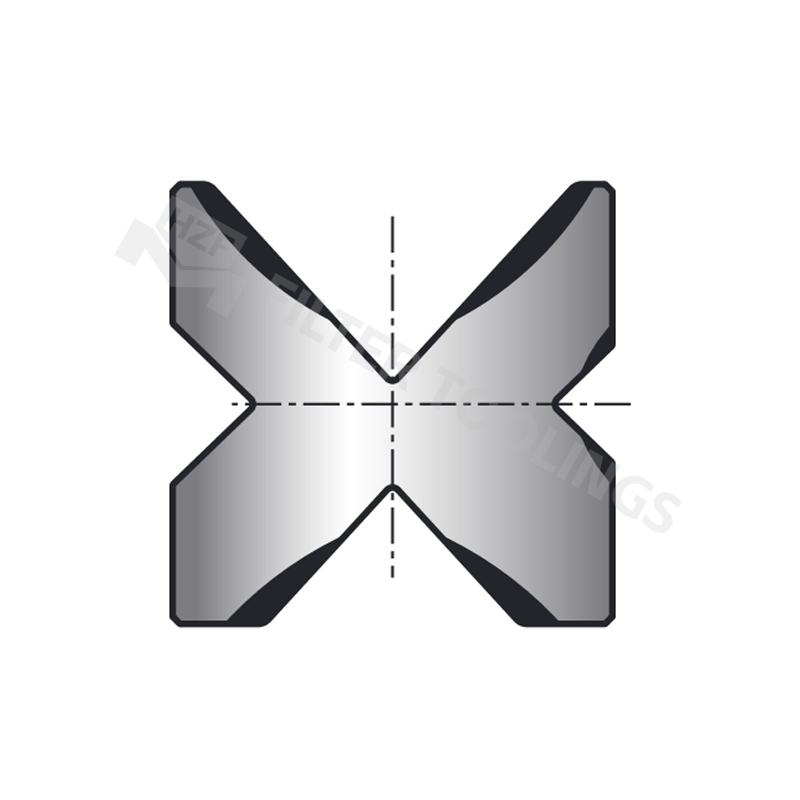

Product drawing
Fierte, a pioneer in sheet metal processing tools, proudly presents the 4v Lower Die for Press Brake – a revolutionary Multi-V Lower Die that redefines versatility and efficiency in bending operations. Also known as the 4-Way Lower Die for Bending Machine, this tool integrates four distinct V-groove sizes into a single unit, eliminating the need for frequent die changes and transforming productivity in mixed-production environments.
The defining feature of our 4v Lower Die for Press Brake is its 4-way Multi-V design, which offers four interchangeable V-groove sizes in one tool. This innovation eliminates downtime spent swapping dies for different material thicknesses or bending angles, cutting production time by up to 30%. From narrow grooves for precision parts to wide grooves for heavy-duty plates, the 4-Way Lower Die adapts seamlessly to diverse project needs.
Our 4v Lower Die for Press Brake is manufactured from top-tier 42CrMo4, 42CrMo, and C45 steels – materials renowned for their exceptional toughness, wear resistance, and ability to withstand high-pressure bending. Unlike low-quality dies that deform or wear out quickly, our Multi-V Lower Die maintains structural integrity even after thousands of cycles, reducing replacement costs and ensuring consistent performance.
Each 4v Bottom Die for Bending Machine undergoes whole body heat treatment with a hardness rating of HRC48-50. This process ensures uniform hardness across the entire die, preventing localized wear and tear and guaranteeing stable bending performance. Whether handling high-volume production or specialized projects, the die maintains accurate bend angles and smooth finishes.
We offer three high-performance surface treatments: Blackening, Sandblasting, and Sandblasting + Blackening. Blackening provides corrosion resistance and a professional finish for indoor use; Sandblasting creates a textured surface that improves grip and reduces slippage; and the combined treatment offers enhanced durability and visual appeal for demanding environments. Each option is applied with precision to extend the die’s service life.
Our 4v Lower Die for Press Brake fits a diverse range of press brake types, including American standard type, Gasparini type, Colgar type, Ajial-Axial type, and Hämmerle-bystronic type machines. This broad compatibility allows seamless integration with your existing equipment, eliminating the need for costly modifications or adapters.
By replacing multiple single-groove dies with one 4-way Lower Die, you reduce tooling costs and storage space. The quick-change functionality cuts downtime, while the die’s long service life and low maintenance requirements lower total cost of ownership. This makes the Multi-V Lower Die a smart investment for businesses looking to boost efficiency and competitiveness.
Item | Details |
Core Product | 4v Lower Die for Press Brake, Multi-V Lower Die, 4-Way Lower Die for Bending Machine |
Material | 42CrMo4, 42CrMo, C45 High-Quality Steel |
Heat Treatment | Whole Body Heat Treatment, Hardness: HRC48-50 |
Surface Treatment | Blackening, Sandblasting, Sandblasting + Blackening |
Payment Terms | T/T, Western Union |
Lead Time | 18-20 days after receiving the deposit |
Packaging | Sturdy Wooden Box (shockproof & moisture-proof) |
Primary Application | Press Brake Bending, Sheet Metal Processing, Mixed-Production Environments, Industrial Fabrication |
Compatible Press Brakes | Amada/Promecam, Trumpf/Wila, Bystronic/Beyeler, LVD type, American standard type, Gasparini type |
V-Groove Configuration | 4-Way Multi-V (Customizable Sizes) |
Quality Assurance | 12-Month Warranty Against Manufacturing Defects |
If standard V-groove dimensions don’t meet your needs, our R&D team customizes groove sizes to match your specific bending requirements. Whether you need narrower grooves for thin materials (0.5mm) or wider grooves for thick plates (12mm), we design a custom 4v Lower Die that delivers optimal performance.
For less common or custom-built press brake models (such as Colly type machines), we engineer dies that fit seamlessly. Provide your equipment’s specifications, and our engineers will ensure perfect integration with your workflow, no modifications required.
For specialized applications, we offer customization of materials and hardness levels. If you require a higher hardness rating or a specific steel grade, our team adjusts the manufacturing process to meet your unique operating conditions, ensuring the custom 4-Way Lower Die performs reliably.
Our technical department provides comprehensive support – from initial design consultations to post-delivery training. We help you optimize the die’s performance for your projects and offer on-site guidance to ensure smooth integration into your workflow.
Our 4v Lower Die for Press Brake bends steel, aluminum, copper, stainless steel, and other common sheet metals. The four V-groove sizes accommodate material thicknesses from 0.5mm to 12mm, making it versatile for diverse applications.
Yes! Our 4v Lower Die is compatible with Bystronic/Beyeler, Amada/Promecam, Trumpf/Wila, and most major press brake brands. Share your machine’s model details for confirmation or customization.
Custom lead time ranges from 20-28 days after design confirmation and deposit receipt. The timeline depends on complexity, but our team prioritizes efficiency to deliver high-quality tools on schedule.
