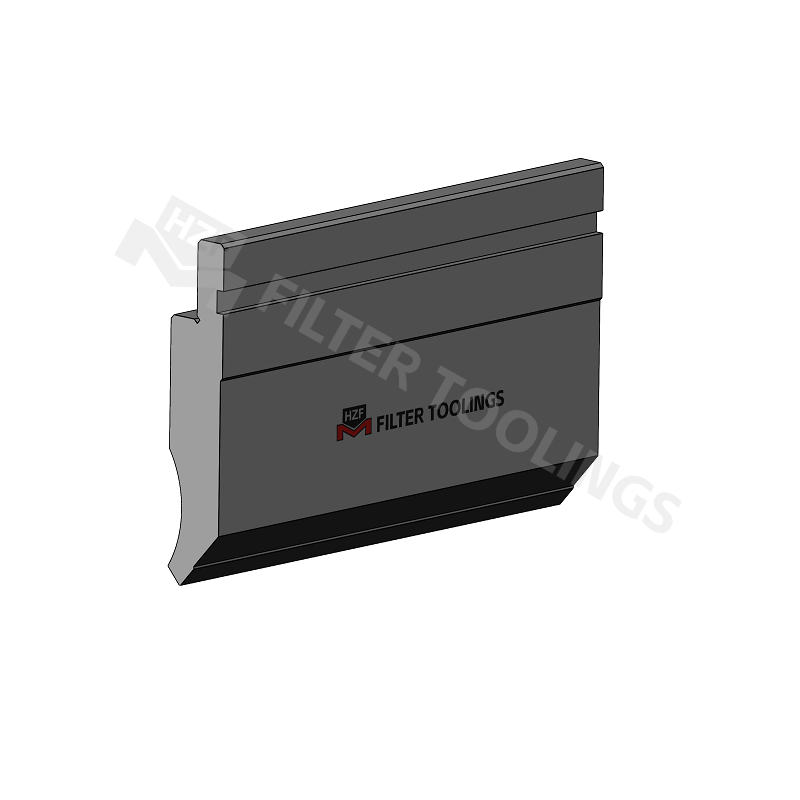

Product 3D image
Product drawing
FLT TOOLING, a professional manufacturer specializing in sheet metal processing equipment, proudly presents the 84-degree standard press brake punch—a high-performance tool engineered for precision bending operations across diverse industries. Crafted with premium materials and advanced heat treatment technology, this press brake punch is designed to match various types of press brake machines, including Amada/Promecam, Trumpf/Wila, Bystronic/Beyeler, and LVD models. It serves as a core component for bending metal sheets with accuracy, ensuring consistent results for both small-batch customization and large-scale production.
Our 84-degree press brake punch stands out for its exceptional durability and cost-effectiveness, making it an ideal choice for metal fabrication workshops, automotive part manufacturers, and hardware processing factories. Backed by our in-house R&D team and strict quality control system, this product not only meets international industry standards but also delivers reliable performance that reduces downtime and maintenance costs for users.
The punch is made from top-grade 42CrMo4, 42CrMo, and C45 steel, which are renowned for their excellent toughness, wear resistance, and load-bearing capacity. These materials lay a solid foundation for the tool’s long service life even under high-intensity working conditions.
Undergoing whole-body heat treatment, the punch achieves a uniform hardness of HRC48-50. This treatment ensures that the tool maintains its shape and performance stability during continuous bending operations, preventing deformation and edge chipping.
To cater to different working environments and anti-corrosion needs, we offer three surface treatment solutions: blackening, sandblasting, and sandblasting + blackening. Blackening enhances rust resistance; sandblasting improves surface adhesion for coating; the combined process delivers both anti-corrosion and wear-resistant effects.
This 84-degree standard punch is compatible with almost all mainstream press brake models on the market. Whether you are using European-style, American-style, or domestic press brakes, our tool can seamlessly integrate, eliminating the need for additional adjustments or adapter parts.
Thanks to precision grinding technology, the punch features a smooth surface and accurate 84-degree angle, ensuring that each bending operation meets strict dimensional requirements. Its high durability reduces the frequency of tool replacement, while its competitive price maximizes the cost-effectiveness for our customers.
Specification Item | Details |
Product Name | 84-Degree Standard Press Brake Punch |
Core Material | 42CrMo4/42CrMo/C45 |
Heat Treatment Hardness | HRC48-50 (whole-body treatment) |
Surface Treatment Options | Blackening, Sandblasting, Sandblasting + Blackening |
Compatible Machine Types | Amada/Promecam, Trumpf/Wila, Bystronic/Beyeler, LVD, American standard, Gasparini, etc. |
Payment Terms | T/T, Western Union |
Lead Time | 18-20 days after receiving deposit |
Packaging | Sealed wooden box (moisture-proof and shock-proof) |
At FLT TOOLING, we understand that different sheet metal processing projects have unique requirements. Therefore, we provide comprehensive customization service for our 84-degree press brake punch to meet your specific needs.
Besides the standard 84-degree design, we can adjust the angle of the punch according to your bending requirements, such as 80-degree, 85-degree, or other special angles.
If your project requires higher hardness or corrosion resistance, we can use alternative premium materials and adjust the heat treatment process accordingly.
For customers operating in harsh environments (e.g., high humidity or corrosive atmospheres), we offer customized surface coating treatments, such as galvanizing or ceramic coating, to enhance the tool’s anti-corrosion performance.
We can tailor the length, width, and tip thickness of the punch to match your specific press brake die and bending workpiece size. Our R&D team will work closely with you to design the optimal solution, ensuring perfect compatibility and processing accuracy.
Our product adopts whole-body heat treatment instead of partial hardening, ensuring uniform hardness and longer service life. We also use high-purity 42CrMo4 and C45 steel, which have better toughness than ordinary steel materials. Additionally, our versatile surface treatment options and wide machine compatibility make it a more cost-effective choice.
If your workshop has a dry environment and requires basic rust resistance, blackening is sufficient. For workpieces that require a matte surface or better coating adhesion, sandblasting is a good option. For humid or outdoor working environments, we recommend the sandblasting + blackening combination for enhanced anti-corrosion and wear resistance.
Yes. The 84-degree standard press brake punch is suitable for bending various metal materials, including stainless steel, aluminum alloy, carbon steel, and copper. However, we suggest adjusting the bending speed and pressure according to the material thickness to achieve the best results.
