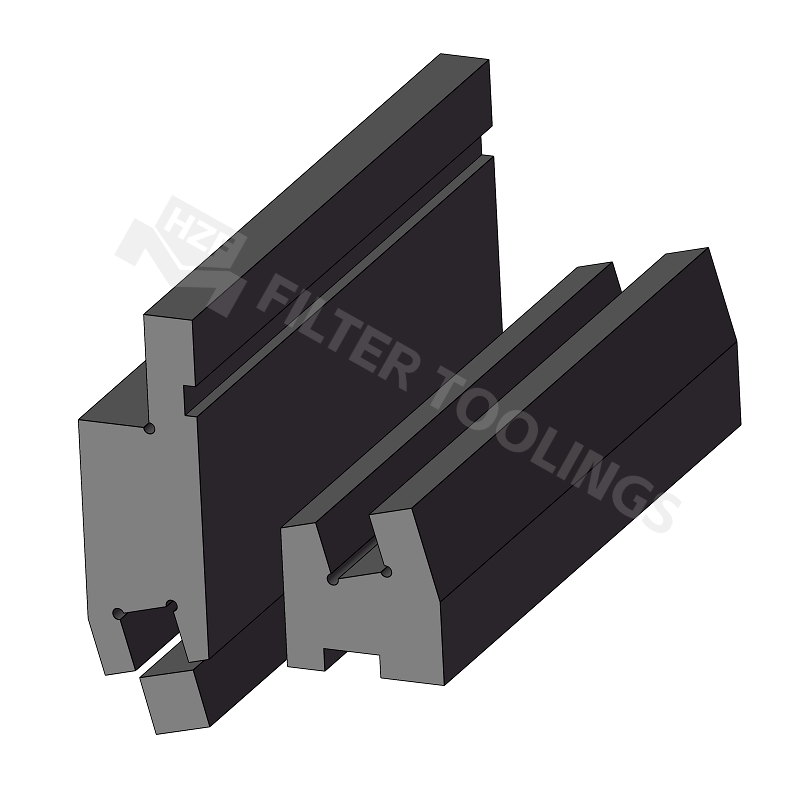

Product 3D image
Product drawing
Fierte introduces the innovative Z-Type Press Brake Tools—a comprehensive Offset Punch And Die Set featuring high-precision Z-Offset Tool Inserts and robust Z-Offset Tool Holders. As a trusted leader in sheet metal processing and bending tools, we’ve engineered this specialized press brake tool to tackle complex offset bending tasks with unmatched accuracy and efficiency. Ideal for fabricators working on custom sheet metal components, automotive parts, and industrial equipment, the Z-Type Press Brake Tools are crafted from premium steels and advanced manufacturing techniques. Compatible with global press brake brands, this set delivers reliable performance, cost-effectiveness, and versatility, making it a must-have for businesses seeking to elevate their bending capabilities. Whether you’re handling thin or thick sheet metal, the Offset Punch And Die Set ensures consistent results, reducing production time and enhancing product quality.
The Z-Type Press Brake Tools are manufactured from top-tier 42CrMo4, 42CrMo, and C45 steels—materials selected for their exceptional tensile strength, impact resistance, and wear resistance. This construction ensures the Offset Punch And Die Set withstands the rigors of continuous use in high-volume production environments.
Each component of the Z-Type Tools undergoes whole body heat treatment, achieving a hardness rating of HRC48-50. This process optimizes the tool’s structural integrity, prevents chipping or deformation during heavy loads, and extends its operational lifespan.
The Z-Offset Tool Inserts and Z-Offset Tool Holders feature a precision-machined design that enables accurate offset bending angles. The ergonomic structure ensures tight tolerances, minimizes material distortion, and allows for seamless integration with your press brake’s operation.
Select from three surface treatment options: blackening, sandblasting, or sandblasting + blackening. Each treatment enhances the tool’s corrosion resistance, reduces friction, and improves durability, ensuring long-term performance in diverse working conditions.
The Offset Punch And Die Set is designed to fit all major press brake brands, including Amada/Promecam, Trumpf/Wila, Bystronic/Beyeler, LVD type, American standard type, Gasparini, and Colgar. This wide compatibility eliminates the need for expensive tool adapters, streamlining your production process.
Fierte’s in-house engineering team leverages cutting-edge technology to design the Z-Type Press Brake Tools. Supported by our technical department, the tool set incorporates innovative solutions that enhance efficiency, reliability, and ease of use—key factors for modern manufacturing.
Combining high-quality materials, advanced manufacturing, and rigorous quality control, the Z-Type Tools offer exceptional value. Their durability reduces maintenance and replacement costs, while their efficiency boosts productivity, delivering a strong return on investment.
Specification Category | Details |
Material | 42CrMo4 / 42CrMo / C45 |
Heat Treatment | Whole body heat treatment, HRC48-50 |
Surface Treatment | Blackening, Sandblasting, Sandblasting + Blackening |
Lead Time | 18-20 days after receiving the deposit |
Packing | Wooden Box (secure and moisture-proof) |
Payment Terms | T/T, Western Union |
Core Components | Z-Offset Tool Inserts, Z-Offset Tool Holders, Offset Punch, Die Set |
Core Application | Specialized offset bending, custom sheet metal components, automotive parts manufacturing |
Compatible Press Brake Brands | Amada/Promecam, Trumpf/Wila, Bystronic/Beyeler, LVD type, American standard type, Gasparini, Colgar, Colly, Ajial-Axial, Hämmerle-bystronic |
Manufacturing Process | Steel forging → Precision machining → Heat treatment → Surface treatment → Assembly → Quality inspection |
Quality Assurance | Multi-stage inspection (dimensional, hardness, performance testing) |
Fierte specializes in providing custom bending tools tailored to your unique project needs. Our dedicated R&D team works closely with you to design personalized Z-Type Press Brake Tools, including custom-sized Z-Offset Tool Inserts, modified Z-Offset Tool Holders, or specialized Offset Punch And Die Set configurations. Whether you require tools for unusual sheet metal thicknesses, specific bending angles, or non-standard press brake models, our technical department will develop the optimal solution. We also offer professional consulting to help you optimize your bending process, ensuring maximum efficiency and product quality. We invite you to visit our facility for on-site inspections, allowing us to gain firsthand insights into your operations and deliver customized tools that exceed your expectations.
What makes the Z-Type Press Brake Tools suitable for specialized offset bending?
The Z-Type Press Brake Tools feature a precision-machined Z-Offset design that enables accurate, consistent offset bending—ideal for complex sheet metal components. The high-grade steel construction and HRC48-50 hardness ensure the tool maintains its shape under pressure, while the versatile surface treatments enhance durability in specialized applications like automotive parts manufacturing.
Yes! We offer full customization service for all components of the Z-Type Tools, including Z-Offset Tool Inserts and Z-Offset Tool Holders. Our R&D team can adjust dimensions, materials, or designs to fit your specific press brake model or project requirements. Simply provide your technical specifications, and we will deliver a tailored solution.
Standard Z-Type Press Brake Tools have a lead time of 18-20 days after deposit receipt. Custom orders may take additional time based on design complexity—our team will provide a detailed timeline once your requirements are finalized. We prioritize efficient communication to ensure your custom tools are delivered on schedule.
For humid or corrosive environments, we recommend the sandblasting + blackening surface treatment. This dual process provides superior corrosion resistance compared to single treatments, protecting the Offset Punch And Die Set from moisture and chemical damage, and extending its service life.
Absolutely! Our technical team provides comprehensive support for all press brake tools, including installation guidance, operation tips, and troubleshooting. We also offer after-sales service to address any issues you may encounter, ensuring your Z-Type Press Brake Tools continue to perform at their best.
Yes! The Z-Type Press Brake Tools are designed to be compatible with American standard press brakes, as well as other global brands like Amada/Promecam, Trumpf/Wila, and Bystronic/Beyeler. If you have concerns about compatibility, our team can verify your press brake model and make adjustments if necessary.
