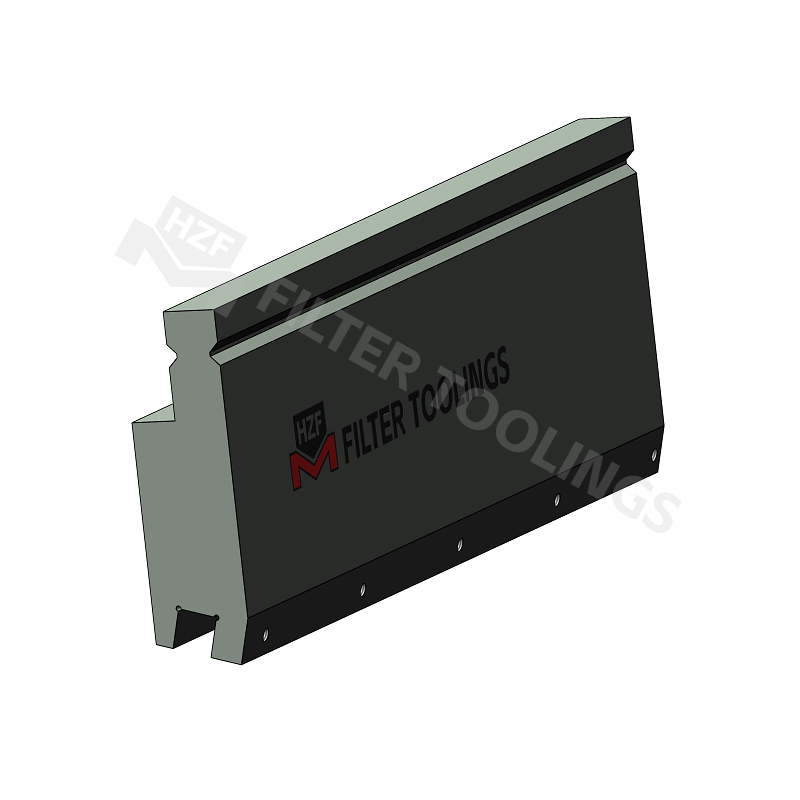

Product 3D image

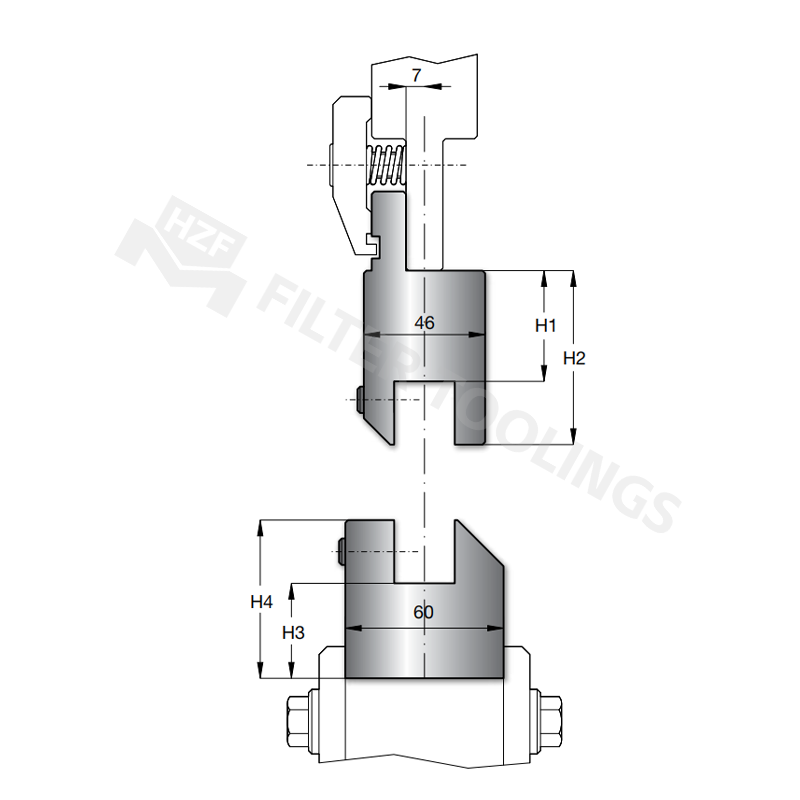

Product drawing
When it comes to precision sheet metal bending, the Z-type press brake tools stand out as a game-changer, and our offset punch and die set—equipped with high-performance Z-offset tool inserts and robust Z-offset tool holders—is designed to redefine efficiency and reliability in your workflow. Manufactured by Fierte, a leading expert in sheet metal processing tools, this specialized set is engineered for compatibility with a wide range of press brakes, making it a versatile choice for manufacturing facilities, metal fabrication shops, and industrial workshops worldwide. Crafted from top-grade 42CrMo4, 42CrMo, and C45 alloy steels, our press brake punches and dies undergo rigorous hardening and precision grinding, ensuring they meet the demanding standards of modern metal bending projects. Whether you’re working on simple bends or complex sheet metal formations, this Z-type offset tool set delivers consistent performance, durability, and cost-effectiveness—core advantages that set Fierte’s sheet metal bending tools apart from generic alternatives.
At the heart of our Z-type offset punch and die set lies a foundation of premium materials: 42CrMo4, 42CrMo, and C45 alloy steels. These materials are renowned for their exceptional strength, toughness, and resistance to wear—critical properties for tools that endure repeated pressure and friction during bending operations. Unlike low-grade steels that deform or dull quickly, our chosen alloys retain their structural integrity even under heavy use, extending the tool’s service life and reducing replacement costs.
To enhance hardness and durability, every component of the offset punch and die set undergoes whole body heat treatment, achieving a Rockwell hardness of HRC48-50. This uniform heat treatment process ensures that the entire tool—from the Z-offset tool inserts to the Z-offset tool holders—boasts consistent strength, eliminating weak points that can lead to premature failure. The result is a tool that maintains sharpness and precision, even after hundreds of bending cycles.
We offer three specialized surface treatment choices to suit diverse application needs: blackening, sandblasting, and sandblasting + blackening. Blackening provides a corrosion-resistant finish that protects the tool from moisture and environmental damage, while sandblasting creates a textured surface that reduces friction during operation. The combined sandblasting + blackening treatment offers the best of both worlds—enhanced grip, corrosion resistance, and a professional aesthetic. Each treatment is applied with precision to ensure long-lasting performance in any workshop environment.
Our Z-type press brake tools are designed to fit virtually any press brake type on the market, including but not limited to Amada/Promecam, Trumpf/Wila, Bystronic/Beyeler, LVD type, American standard type, Gasparini type, Colgar type, Colly type, Ajial-Axial type, and Hämmerle-bystronic type. This broad compatibility eliminates the need for custom tooling for each machine, saving you time and investment while streamlining your production process.
Every offset punch and die is subjected to precision grinding, ensuring tight tolerances and smooth surfaces that translate to clean, accurate bends. The meticulous grinding process eliminates imperfections that can mar sheet metal workpieces, guaranteeing consistent quality across every project. Whether you’re bending thin sheets or thick plates, our tools deliver crisp, precise angles that meet the most stringent industry standards.
Fierte’s sheet metal bending tools are engineered for efficiency—they reduce bending time by minimizing friction and ensuring smooth workpiece release, boosting your production throughput. Their durable construction means fewer replacements, while their cost-effective pricing makes them an excellent investment for businesses of all sizes. Reliability and value are at the core of our design, ensuring you get the most out of every tool purchase.
Parameter | Details |
Material | 42CrMo4, 42CrMo, C45 high-quality alloy steel |
Heat Treatment | Whole body heat treatment; Hardness: HRC48-50 |
Surface Treatment | Blackening; Sandblasting; Sandblasting + Blackening |
Payment Terms | T/T, Western Union |
Lead Time | 18-20 days after receiving the deposit |
Packaging | Sturdy wooden box (shockproof, moisture-resistant for safe transportation) |
Compatibility | Amada/Promecam, Trumpf/Wila, Bystronic/Beyeler, LVD type, American standard type, Gasparini type, Colgar type, Colly type, Ajial-Axial type, Hämmerle-bystronic type, etc. |
Core Components | Z-offset tool inserts, Z-offset tool holders, offset punch, offset die |
Processing Technique | Hardening (for strength), precision grinding (for accuracy) |
Application | Sheet metal bending, metal fabrication, industrial press brake operations |
At Fierte, we understand that not all bending projects fit standard tool specifications. Our in-house R&D team of experienced engineers specializes in designing custom Z-type press brake tools to address unique challenges—whether you need specialized Z-offset tool inserts, modified offset punch and die dimensions, or tools for unconventional press brake models. We work closely with you to understand your project requirements, material types, and bending goals to create a solution that optimizes performance.
Our technical department provides end-to-end support throughout the customization process. From initial design consultations to prototype testing, we ensure that your custom tools meet your exact specifications. We also offer guidance on tool integration with your existing press brake systems, helping you maximize efficiency and minimize downtime.
Our offset punch and die set is compatible with a wide range of press brake models, including Amada/Promecam, Trumpf/Wila, Bystronic/Beyeler, LVD type, American standard type, Gasparini type, and more. If you have a specific press brake model not listed, contact our technical team—we can verify compatibility or design custom adaptations.
These alloy steels offer an unbeatable combination of strength, toughness, and wear resistance—essential for press brake punches and dies that endure high pressure and repeated use. They outperform low-grade steels, ensuring longer tool life and consistent bending quality.
