Scrap and rework devastate shop floor profitability. Producing aesthetic stainless steel parts requires pristine surface conditions. Brushed appliance covers and architectural panels look terrible when marred by deep die marks. Galling destroys the visual appeal of premium products.
Stainless alloys possess incredible tensile strength. Bending them creates immense friction against hardened steel V-dies. This metal-on-metal sliding inevitably causes surface galling. Standard forming techniques simply cannot protect delicate finishes from heavy pressure.
You need the right equipment to stop this damage completely. This guide helps fabrication practitioners evaluate specific protective solutions. We explore upgrading standard setups using protective methodologies and specialized tooling. You will learn how to adjust calculations, choose the correct die inserts, and eliminate secondary polishing operations forever.
Traditional V-dies will consistently gall stainless steel; achieving zero-defect bends requires intervening at the tooling level.
Solutions range from low-CapEx consumables (urethane films) to high-volume dedicated equipment (mark-free bending tooling).
Switching to non-marring setups fundamentally changes bending calculations, requiring adjustments for increased tonnage and springback.
The choice of solution depends heavily on production volume, material grade (e.g., 304 vs. 316), and surface finish requirements.
Galling represents a severe structural liability. Die marks are never just an ugly aesthetic flaw. Heavy friction compromises the natural passivation layer of stainless alloys. This microscopic damage creates tiny pockets where oxidation easily takes hold. You lose the primary corrosion-resistant benefit of using premium materials.
Success requires establishing strict manufacturing criteria. Your absolute goal is eliminating secondary operations entirely. Tooling setups fail if operators must sand, polish, or grind out scratches post-bend. Rework ruins production throughput. A flawless finish straight off the machine defines true manufacturing success.
Shop economics dictate how you solve this issue. High-mix, low-volume shops face unique operational constraints. They often rely on flexible, temporary solutions. Massive OEM fabricators demand absolute process reliability. Large production runs cannot tolerate manual touch-ups or slow cycle times.
Common structural and financial consequences of die marks include:
Compromised Corrosion Resistance: Deep scratches break the chromium oxide layer. Rust forms quickly in these crevices.
Increased Labor Costs: Hand-blending a #4 brushed finish takes hours. It requires highly skilled labor.
Part Rejection: Clients reject architectural panels showing inconsistent grain patterns caused by aggressive grinding.
Tool Degradation: Galling transfers stainless material onto the die shoulder. This buildup ruins subsequent parts.
Common Mistake: Relying on grinding to fix die marks introduces excessive heat. This heat warps thin-gauge panels and further destroys the alloy's structural integrity.
Fabricators must intervene directly at the tooling level. Several effective strategies prevent metal-to-metal contact during forming operations. Each approach offers different scalability and accuracy profiles.

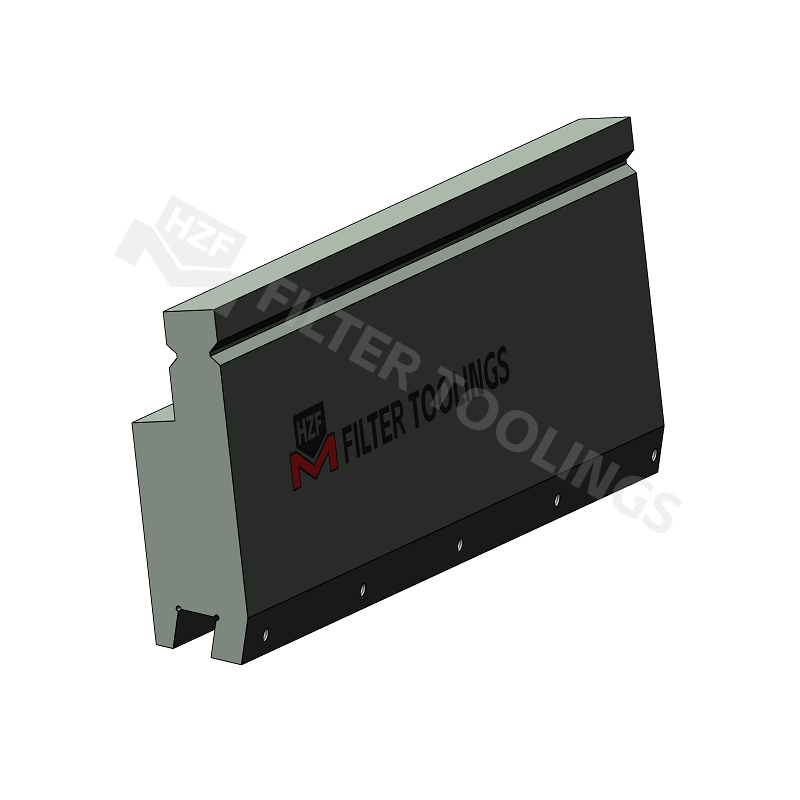

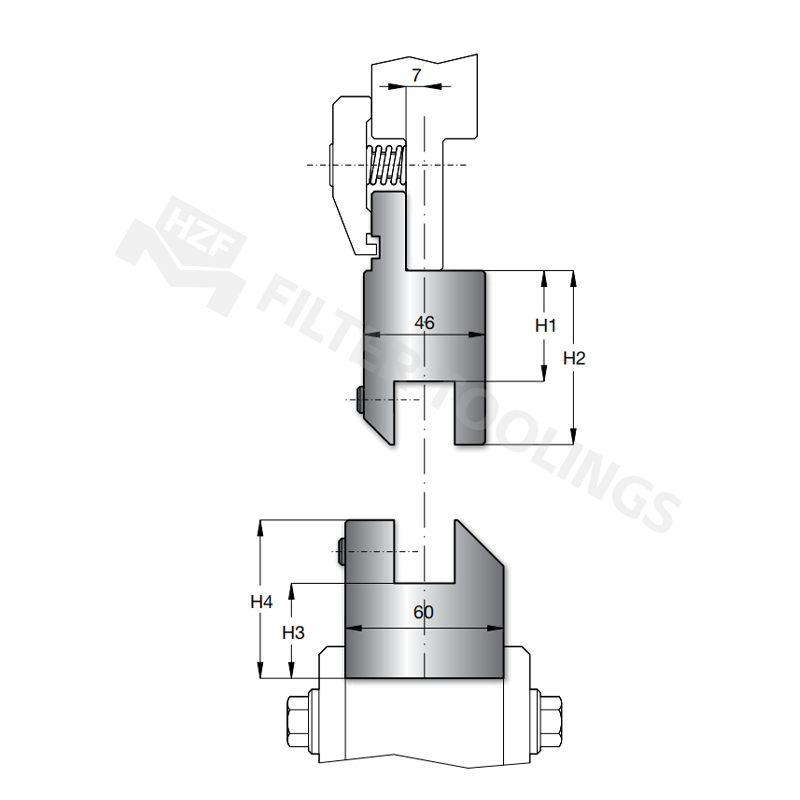

Synthetic inserts prevent direct contact between the workpiece and steel die shoulders. These tools use a metal holder to secure replaceable urethane or nylon pads. They cradle the metal gently during the stroke.
These inserts provide excellent scalability. You get highly consistent finishes across medium-volume runs. However, synthetic materials wear down over time. Operators must schedule regular replacements. Worn inserts severely compromise bend angle accuracy. press brake tooling requires routine auditing to guarantee precision.
Rotary dies feature rotating half-moons inside the die body. They fold the metal smoothly. The workpiece never drags over a sharp die shoulder. The rotating action eliminates sliding friction entirely.
You face the highest upfront capital expenditure here. Yet, they provide the lowest possible friction. This makes mark-free bending tooling ideal for high-volume production. They handle aggressive angles flawlessly. Roller dies drastically reduce required tonnage while protecting delicate finishes.
Thick gauges often destroy synthetic inserts instantly. Heavy plate requires robust steel dies. You can mitigate galling by widening the shoulder radii. A larger radius distributes pressure over a wider surface area.
Polishing the die shoulders offers another partial mitigation strategy. Highly polished shoulders lower friction just enough to reduce severe galling. This approach works best when combined with heavy-duty drawing lubricants.
Best Practice: Always inspect rotary dies for trapped debris. A single metal shaving caught in the rotating mechanism will scratch every subsequent part.
Best Practice: Use hard nylon inserts for tight tolerances. Reserve softer urethane inserts for parts where avoiding surface marking outweighs strict angular precision.
Choosing between protective films and dedicated equipment requires careful financial analysis. Both methods prevent scratching effectively. They differ vastly in labor requirements and cycle times.
You place protective urethane sheets directly over standard V-dies. The punch pushes the workpiece and the film down into the die cavity.
This method offers a very low barrier to entry. You can implement it immediately using existing shop equipment. It provides instant protection for short runs.
However, it remains highly labor-intensive. Operators must reposition or replace the film frequently. This slows down cycle times considerably. Tape degrades, thins out, and splits rapidly under high tonnage. Broken tape ruins the workpiece instantly.
Upgrading to scratch-resistant press brake dies eliminates ongoing consumable costs. Roller dies and insert dies require zero mid-run adjustments. Operators simply load the part and bend.
You must compare ongoing labor costs against upfront capital expenditure. Consider the following evaluation chart when shortlisting your options.
Tooling Solution Evaluation Chart | |||
Solution Type | Ideal Volume | Upfront Cost | Cycle Time Impact |
|---|---|---|---|
Urethane Film / Tape | Prototypes (1-50 parts) | Very Low | High (Frequent repositioning) |
Nylon/Urethane Inserts | Medium (50-500 parts) | Moderate | Low (Occasional insert swap) |
Rotary / Roller V-Dies | High (500+ parts) | High | None (Runs at full machine speed) |
Recommend films for prototyping and low-volume runs. Mandate dedicated mark-free dies for production runs exceeding hundreds of parts per month. The labor savings alone justify the dedicated equipment upgrade quickly.
Different alloys react differently under pressure. You cannot treat 304 and 316 like standard mild steel. They exhibit unique mechanical properties.
These alloys possess significantly higher work-hardening rates. The metal becomes harder and more brittle as you bend it. stainless steel sheet metal bending requires deliberate, calculated force. 316 contains molybdenum, making it slightly more challenging to form than 304.
Always verify the material certification before starting. Ensure your punch tip radius exceeds the material thickness to prevent severe cracking along the bend line.
Alloy Bending Characteristics | |||
Alloy Grade | Yield Strength (approx) | Work-Hardening Rate | Tooling Wear Impact |
|---|---|---|---|
304 Stainless | 30,000 psi | High | Moderate galling risk |
316 Stainless | 40,000 psi | Very High | Severe galling risk |
Pre-polished materials demand extreme care. A #4 architectural finish looks beautiful but scratches easily. You must bend across the grain whenever possible. Bending parallel to the grain encourages micro-cracking along the fold.
This microscopic structural failure often looks exactly like a surface scratch. It ruins the aesthetic uniformity. Plan your flat patterns meticulously to ensure correct grain orientation during forming.
Even perfect tools will scratch dirty metal. Shop dust ruins pristine surfaces instantly. Grinding grit acts like sandpaper under extreme pressure.
Carbon steel shavings trapped between the die and workpiece cause disastrous gouges. Furthermore, carbon steel dust embeds itself into the stainless surface, causing aggressive rust spots later. You must wipe down the work area rigorously.
Clean all machine surfaces before forming brushed panels.
Use dedicated microfiber cloths for stainless parts only.
Never use the same abrasive pads on carbon steel and stainless alloys.
Switching to protective setups changes your fundamental machine calculations. You cannot use standard mild steel parameters. Operators must adapt their techniques to accommodate synthetic materials.
Urethane films and nylon inserts act as heavy shock absorbers. They compress before the metal actually begins to bend. Operators must increase the machine's tonnage to achieve the desired angle.
Transparently explain this penalty to your team. You often need 15% to 20% more force to push through the synthetic barrier. Ensure your machine has the available capacity to handle this increased load safely.
Stainless inherently suffers from severe springback. It wants to return to its flat state vigorously. Synthetic tooling dramatically alters over-bending calculations.
You must perform physical test bends on scrap material first. Measure the results precisely. Update your CNC controller parameters to reflect the new yield points. Failing to update the controller results in consistently under-bent parts.
Mark-free urethane setups are strictly for air bending operations. You only press the material partially into the V-opening. You do not stamp the metal fully into the die.
Bottoming out destroys synthetic inserts instantly. Coining obliterates protective films under immense pressure. Clarify these limitations with every operator. Accidental bottoming will shatter nylon holders and ruin expensive tooling investments in a single stroke.
Common Mistake: Using a punch with a sharp tip radius on thick stainless causes internal material displacement. This creates a severe crease on the outside of the bend, even if you use protective film perfectly.
Relying on operators to "just be careful" fails completely. It is never a scalable quality control strategy for premium aesthetic parts. Fabricators must implement structural, repeatable solutions at the machine level to eliminate galling.
Fabrication managers should audit their monthly costs for post-bend polishing and rework. Calculate exactly how many hours your team spends fixing preventable scratches. Use that precise figure to justify your tooling budget immediately.
Bulk urethane protective film works well for immediate, low-volume relief. However, transitioning to a dedicated set of rotary or nylon-insert dies guarantees long-term profitability. Upgrade your equipment now to secure flawless finishes straight off the press brake.
A: No. While softer than stainless, they will deform rapidly, destroying your bend accuracy after only a few hits.
A: Generally, 0.015" to 0.030" is standard, but it depends on the V-opening size and the sharpness of the punch tip.
A: Only for one-off prototypes in thin gauges. Masking tape tears under high pressure and leaves adhesive residue that requires chemical cleaning, defeating the purpose of saving time.
A: This is usually a coining/bottoming issue or using a punch tip radius that is too sharp for the material thickness, causing internal material displacement rather than surface friction.
