Selecting the right equipment for your shop isn't just a basic technical necessity. It acts as a direct driver of shop floor profitability, setup time reduction, and scrap minimization. Every bend matters. Using mismatched or substandard equipment often leads to inconsistent angles, premature machine wear, and severe bottlenecks in your daily bending processing. Manufacturers face constant pressure to produce flawless parts faster. You need reliable systems to keep up.
This article provides a definitive framework to help you identify tooling styles accurately. We will apply critical technical selection rules to prevent costly errors on the shop floor. Finally, you will learn how to make strategic, shop-level procurement decisions. By mastering these principles, you will build a highly scalable tooling library perfectly suited for your specific forming operations.
Tooling compatibility is dictated by tang geometry: American (0.500"), European (13mm), and Wila/Trumpf (20mm).
Precision in bending processing relies on strict mathematical guidelines, notably the "Rule of 8" for V-die selection.
Shop-level procurement should prioritize modularity, "same-height" standardizations, and automation readiness over individual task-based purchasing.
Material selection matters: Hardened Chromoly steel ensures longevity, while urethane tooling offers mar-free bending for prepainted surfaces.
Operators frequently struggle to match tools to their machines. You can easily prevent physical trial and error by looking at tang geometry. The tang is the upper mounting portion of the punch. It dictates how the tool seats securely inside the machine ram. Identifying this dimension helps buyers correctly audit their current machines. You can ensure perfect compatibility simply by measuring the tang width.
You can identify the American style by its standard 0.500-inch wide tang. Many traditional fabrication shops rely on this setup. They prioritize cost-efficiency and overall versatility. It serves as a reliable workhorse for general sheet metal forming. However, it does have specific limitations. Frequent changeouts may gradually impact seating accuracy over time. They lack the automatic self-seating advantages found in newer clamping mechanisms.
European tooling features a distinct 13mm wide tang. You will notice a rectangular offset slot facing the operator. High-precision industries deeply favor this style. Aerospace and automotive manufacturers rely on it to maintain exacting tolerances. The offset slot design provides excellent deflection prevention. It ensures highly stable seating during intense pressure applications. This stability prevents the punch from shifting under heavy tonnage.
This advanced style features a robust 20mm wide tang. You will easily recognize it by the dual grooves located on the front and rear of the tang. Equipment designed to fit a wila press brake machine frequently utilizes this profile. It delivers massive efficiency upgrades for high-volume production environments.
The design incorporates built-in safety mechanisms. Lightweight punches weighing under 27.6 lbs utilize spring-loaded safety buttons. Operators can snap them vertically into the ram for instant quick-changes. Meanwhile, heavy dies utilize robust safety pins. These pins allow operators to slide massive tools laterally into place without risking injury. Facilities leveraging hydraulic or automatic clamping drastically reduce setup times using this standard.
Tooling Style |
Tang Width |
Key Identification Features |
Primary Use Case |
|---|---|---|---|
American Precision |
0.500 inches |
Straight tang, no complex slots |
Versatile, cost-efficient traditional setups |
European Precision |
13 mm |
Offset rectangular slot facing operator |
High-precision, strict deflection control |
Wila / Trumpf |
20 mm |
Front and rear grooves, safety buttons/pins |
High-volume, rapid automated clamping |
Every bending operation relies on a matched set of upper and lower components. Understanding how different shapes function allows you to execute complex profiles. You must carefully evaluate both the physical geometry and the underlying material strength. Investing in quality Press Brake Tooling directly protects your machine investment.
Punches apply direct downward pressure to force the sheet metal into the die cavity. You cannot simply use one punch shape for all jobs. Operators must apply clear selection logic based on the desired part profile.
Standard Punches: These handle basic L-profiles and straightforward 90-degree bends. They offer maximum rigidity for standard forming tasks.
Gooseneck Punches: These are absolutely mandatory for forming J-profiles. You must use them whenever the return flange exceeds the base length. The deep relief curve prevents the tool from crushing the previously formed bend.
Acute Punches: These sharp-angled tools handle severe angles below 90 degrees. Operators often use them for hemming preparations or complex multi-bend parts.

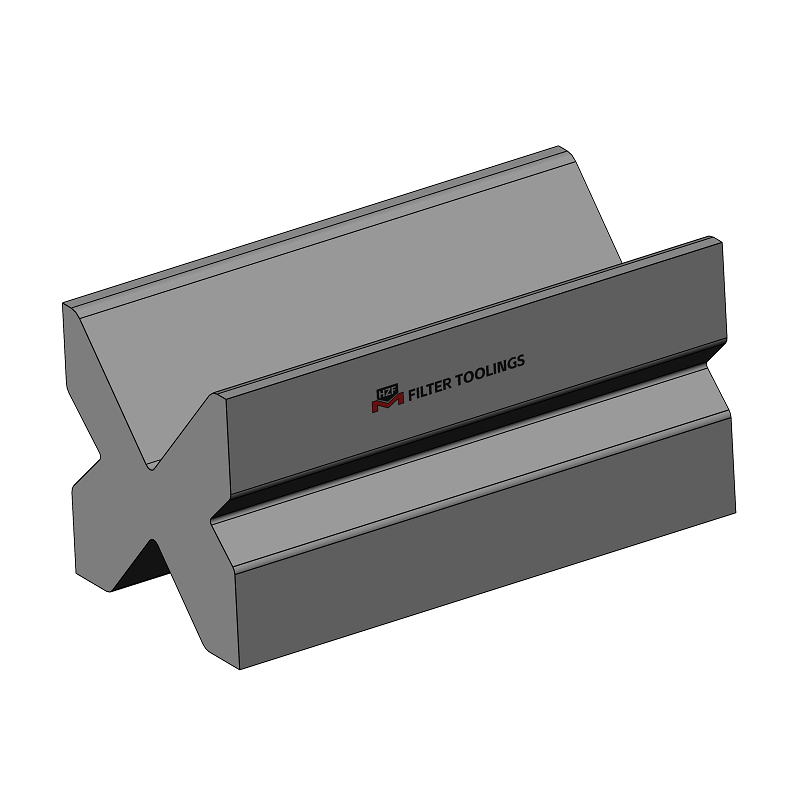

Conversely, dies form the bottom supporting cavity. V-dies remain the universal standard across the industry. However, simply choosing a V-die is not enough. Evaluating the exact opening width is a critical safety requirement. Choosing a die with an incorrect opening width often leads to severe tool fracture or dangerous shrapnel.
Tooling durability depends heavily on the chosen steel alloy and its subsequent heat treatment. We strongly recommend high-tensile steel options like Chromoly (42CrMo). Manufacturers typically harden this material to approximately 45 HRC (Rockwell Hardness Scale C). You must understand a common industry misconception regarding hardness. The HRC rating primarily measures resistance to surface marring, scratching, and abrasive wear. It does not dictate raw tonnage capacity. A hard tool resists indentations, but structural mass handles the actual bending force.
Sometimes, traditional steel tools damage the workpiece. In these scenarios, urethane tooling provides a mandatory mar-free alternative. You should position urethane dies as a required solution for bending prepainted metal, thin aluminum, or polished stainless steel. They conform perfectly to the punch without scratching the sheet surface. This eliminates expensive secondary polishing operations and reduces overall scrap rates.
Precision relies entirely on strict mathematics. You cannot guess tooling dimensions and expect repeatable results. Following hard engineering rules demonstrates expertise and guarantees safe specifications. We use specific formulas to protect the operator and the machine.
The Rule of 8 for V-Die Openings: The optimal V-die opening must always measure 8 times the material thickness. This provides the perfect balance of tonnage reduction and profile accuracy. For example, forming 0.060-inch material requires a 0.5-inch V-die (0.060 x 8 = 0.48, rounding to 0.5). Straying below 5 times the material thickness risks catastrophic tool failure due to concentrated stress.
The 16% Rule for Air Bending: In air bending, the punch does not bottom out in the die. Instead, the resulting inner bend radius naturally forms at approximately 16% of the chosen V-die opening width. Buyers must reverse-engineer their tool selection. You must look at the blueprint radius requirements first. Then, you calculate the required die opening to hit that specific radius.
Calculating Minimum Punch Height: Forming four-sided boxes requires tall punches to avoid machine collisions. You calculate the required clearance using a strict formula: Minimum Punch Height = (Box Depth / 0.7) + (Ram Thickness / 2). Applying this calculation prevents the previously bent sides from crashing into the machine ram during the final bend.
Material Thickness (Inches) |
Multiplier |
Calculated V-Die Opening |
Standard Die Selection (Inches) |
|---|---|---|---|
0.036 (20 Ga) |
x 8 |
0.288 |
0.315 (approx. 5/16") |
0.060 (16 Ga) |
x 8 |
0.480 |
0.500 (1/2") |
0.120 (11 Ga) |
x 8 |
0.960 |
1.000 (1") |
0.250 (1/4 Plate) |
x 8 |
2.000 |
2.000 (2") |
Most shops buy tools reactively. They purchase a specific punch just to complete a single urgent job. This fragmented approach fills the storage racks with incompatible heights and unusable segments. You must elevate the conversation from a single task to a strategic management system. Upgrading your press brake tooling setup requires forward-thinking procurement.
We strongly recommend purchasing tools featuring unified heights across your entire library. Mixed heights cause massive production delays. Operators must stop everything to recalibrate backgauges and adjust machine stroke parameters between jobs. Same-height standardization eliminates these delays entirely. An operator can swap a gooseneck punch for an acute punch without changing the machine’s foundational setup.
Avoid buying massive, single-piece solid tools whenever possible. We advocate strictly for segmented or fractional tooling sections. Solid lengths are incredibly heavy and dangerous to maneuver. Furthermore, if you damage a tiny section of a solid die, you must discard the entire piece. Segmented tools allow operators to build exact bending lengths incrementally. You combine small fractions like building blocks. If one segment chips, you only replace that small, inexpensive piece.
The modern shop floor depends heavily on setup reduction. You must prepare your library for future automation. We introduce immense production efficiency by pairing precision equipment with Automatic Tool Changers (ATC). Manual tool swapping drains hours of valuable production time each week. Upgrading from manual clamping methods to fully robotic ATC systems can reduce setup times by up to five times. You recover thousands of lost production hours simply by standardizing your interfaces for robotic handling.
A strategic procurement plan falls apart if you choose the wrong manufacturing partner. The market is flooded with cheap, poorly hardened alternatives. Guide your final purchasing decision by establishing strict, unyielding vendor evaluation criteria. You should never compromise on foundational engineering quality.
You cannot produce accurate parts using inaccurate dies. Acceptable precision equipment should maintain strict manufacturing tolerances. Demand written guarantees confirming tolerances remain within ±0.0005 inches. Slight deviations at the tool tip multiply dramatically across a wide sheet of metal. Strict tolerances ensure perfect alignment across multiple segmented pieces.
Always verify the exact hardening process utilized by the vendor. Standard surface heat treatments often wear away after a few months of heavy usage. You should demand deep-induction hardened or specialized laser-hardened working surfaces. These advanced processes penetrate deeper into the steel core. They provide vastly superior long-term wear resistance along the high-friction bending radii.
Quality vendors do much more than simply ship metal parts. They provide deep consultative engineering support. A reputable manufacturer should readily supply comprehensive tonnage calculation charts. They should perform clamping system compatibility audits before you finalize an order. Furthermore, they must offer actionable spring-back compensation advice. For instance, bending stainless steel usually requires over-bending. A knowledgeable vendor will proactively supply 88-degree punches to perfectly execute 90-degree stainless bends.
Effective forming relies entirely on matching the right tang style to your exact machine profile. You must adhere to strict mathematical selection rules to guarantee both safety and accuracy. Furthermore, investing in highly durable materials like hardened Chromoly ensures your library outlasts rigorous production schedules.
Your next step requires immediate action on the shop floor. Audit your current library specifically for height standardization. Look closely at your racks to identify incompatible segments. You must evaluate whether your current clamping systems—such as manual bolts versus hydraulic clamps—are bottlenecking your daily production.
Stop losing valuable production hours to inefficient changeovers. Download our Press Brake Tooling Comparison Chart (PDF) or contact our engineering team directly today. We will help you map out a standardized, highly scalable tooling library tailored perfectly for your shop floor.
A: Focus primarily on measuring the tang width. A 0.500-inch tang indicates an American style. A 13mm tang points directly to European precision. A 20mm tang signifies a Wila or Trumpf style. You should also look closely for safety slots, front grooves, or spring-loaded buttons to confirm the specific clamping mechanism.
A: High-tensile materials like stainless steel naturally spring back after forming pressure is released. You must intentionally over-bend the material to achieve a precise right angle. An 88-degree punch provides the necessary geometric clearance. This allows the sheet to flex slightly past 90 degrees and naturally relax back into perfectly square dimensions.
A: Yes, you can bridge different styles using specialized mounting adapters. However, installing these adapters consumes valuable open height between the upper ram and the lower bed. You must carefully calculate your remaining daylight clearance beforehand. Failing to do so might prevent large, deep-box parts from fitting inside the forming area safely.
