Treating your machine's tooling as an afterthought leads directly to excessive scrap rates, operator safety risks, and premature equipment wear. You cannot maximize shop-floor profitability without bridging the gap between theoretical machine capacity and actual production reality. Finding this balance requires proper planning.
Too often, fabrication shops purchase accessories based on brand hype rather than hard engineering data. This disconnect causes complex setups to fail. It ruins expensive sheet metal. It also degrades your primary equipment over time. You must avoid these common procurement mistakes to stay competitive.
You need an evidence-based approach to your equipment investments. In this guide, you will learn how to base your decisions on tensile strength, precision tolerances, and hardware compatibility. We will help you align your geometric requirements and production goals to build a highly efficient fabrication workflow.
Tooling must be reverse-engineered from your machine’s physical limits, specifically Open Height (Daylight) and maximum tonnage.
Standardize your shop’s core die library using the "8x2 Rule" before purchasing specialized, job-specific punches.
Accurate bending processing requires matching die material hardness (e.g., 45 HRC) against the tensile strength and spring back behavior of the workpiece.
Upgrading clamping systems (e.g., European or Wila standards) often yields higher ROI than buying standalone high-tolerance tooling for an outdated holder.
You must evaluate your implementation realities before looking at specific punch shapes. Buyers frequently purchase equipment their machines physically cannot accommodate. We can prevent this by measuring baseline hardware constraints first.
Daylight refers to the maximum open space between the machine bed and the ram. Failing to calculate the combined height of the punch, die, and holder will cause disastrous collisions. You need sufficient clearance when forming deep boxes or handling large flanges. A common mistake involves ignoring the stroke length. You must subtract your tool heights and the material thickness from the total open height. The remaining space dictates how easily operators can remove finished parts.
Every fabrication shop faces the risk of under-tonnage. Pushing a machine beyond its rated limit damages the hydraulic rams. Operators can safely compensate for a lack of machine tonnage by selecting a wider V-die opening. Expanding the die width significantly reduces the required forming force. However, you sacrifice some internal radius tightness. You must weigh this trade-off carefully against your specific print tolerances.
You should evaluate your clamping systems alongside your tooling choices. The industry relies on three main styles. American Style features a smaller surface area and represents traditional setups. European Style offers a larger contact surface for robust stability. New Standard setups, such as a modern wila press brake machine configuration, feature automatic clamping. They enable rapid, highly accurate tool changes.
We recommend establishing unified tolerances across your facility. You should aim for tolerances between ±0.0004" and ±0.0005". Mixing different standards creates setup bottlenecks. Standardized clamping systems ensure your operators spend less time shimming and more time producing parts.
You must connect your chosen fabrication method directly to tooling geometry. The physical durability requirements change drastically based on how you form the metal. Let us explore the primary methods.
Air bending is the most common industry practice. The tool does not bottom out inside the die. Instead, the punch pushes the material just far enough to achieve the desired angle. The material rests on the two shoulders of the V-die and the tip of the punch.
This bending processing method requires you to account for "spring back." When the ram releases pressure, the metal naturally Relaxes and opens up. To achieve a perfect 90° bend, the punch must often be angled at 85° to 88°. This over-bending accommodates the relaxation effect. It proves especially crucial when forming high-tensile stainless steel.
Bottom bending and coining require massive force. They demand three to five times the tonnage requirement compared to air bending. The punch forces the material completely into the V-die. The material takes the exact shape of the tooling.
Your dies and punches must precisely match the desired angle. You cannot use an 85° punch to coin a 90° angle. Furthermore, you must purchase highly durable tool steel. Standard dies will deform under extreme compressive forces. You must verify your machine's tonnage capacity before attempting these methods.
Process Type | Tooling Angle Rule | Tonnage Requirement | Best Application |
|---|---|---|---|
Air Bending | Over-bend by 2° to 5° | Low to Moderate | Standard sheet metal, flexible setups |
Bottom Bending | Exact match to target angle | High (3x to 5x of Air) | High-precision repeating parts |
Coining | Exact match, sharp radius | Extreme | Sharp corners, permanent deformation |
Vendors provide extensive specification sheets. You need exact engineering math to evaluate these numbers accurately. Guesswork wastes money and ruins material. Let us review the foundational calculations.
Industry professionals rely on a proven standard called the Rule of 8. The ideal V-die opening should be exactly eight times the material thickness. This specific ratio represents the sweet spot for general fabrication. It ensures optimal bend angle control and stability. It keeps the required tonnage manageable while producing a predictable radius. If you use a die smaller than eight times the thickness, the tonnage spikes rapidly. If you use a larger die, the material may slip.
You must understand how the die width dictates the final part geometry. The punch tip does not solely determine the inside radius in air bending. The V-die opening plays the dominant role.
Internal Radius Formula: In air bending, your expected Internal Radius equals roughly 16% of the V-opening width. (Internal Radius ≈ V-opening width × 0.16).
Minimum Flange Formula: The minimum executable flange length requires enough material to securely span the die shoulder. Minimum Flange ≈ V-opening width × 77%.
Operators frequently encounter implementation risks when bending across cutouts. Holes located near the bend line cause distortion. The material lacks support and bulges outward. We call this a blowout.
You need specialized solutions for these scenarios. Standard V-dies will fail here. Specify the need for rocker-type dies in your inventory. These tools feature rotating inserts. They support the material flatly throughout the entire forming cycle. This constant support eliminates hole distortion entirely.
Buyers must weigh upfront costs against long-term replacement cycles. Cheap steel deforms quickly. It creates safety hazards and produces inaccurate parts. You must evaluate material specifications closely.
High-volume shops cannot rely on low-carbon steel accessories. You must identify premium materials for your primary production cells. We recommend 42CrMo (Chromoly) as an excellent baseline. It offers fantastic fatigue resistance and toughness. For extreme wear applications, Tungsten Carbide serves as the ultimate benchmark. Carbide inserts resist scratching and maintain their profile through millions of cycles.
You must compare your tooling hardness against your workpiece materials. Tooling must sit around 45 HRC (Rockwell Hardness Scale). Compare this to standard workpiece materials. Regular stainless steel registers at approximately 28 HRC. Aluminum sits much lower. This significant hardness differential ensures the punch penetrates the material without wearing down its own tip. If you form hard-plate materials, you must upgrade your punch hardness proportionally.
Material Type | Average HRC Value | Wear Resistance Level |
|---|---|---|
Standard Mild Steel Part | 15 - 20 HRC | Low (Workpiece) |
Stainless Steel Part | ~28 HRC | Moderate (Workpiece) |
Standard 42CrMo Tooling | 45 - 48 HRC | High (Tooling Base) |
Laser Hardened Tips | 55 - 60 HRC | Extreme (Tooling Edge) |
Even the hardest punch will fail to produce straight bends on long parts if your machine deflects. When hydraulic rams apply pressure, the center of the machine bed bows downward. This causes the bend angle in the middle of your part to be wider than the edges.
Your machine needs a hydraulic or mechanical crowning system. Crowning wedges push the center of the lower die upward. This action compensates for bed deflection. You cannot solve bed deflection by buying harder dies. You must address the hardware alignment directly.
You must differentiate between establishing baseline shop capability and buying for a single contract. Many shops buy random dies based on immediate needs. This creates a cluttered, incompatible mess. You need a systematic procurement method.
You can build a versatile, standardized press brake tooling inventory using the 8x2 method. This strategy prevents duplicate purchases and covers maximum material ranges.
Identify the Extremes: Find your shop's thinnest commonly used material. Find your thickest material.
Calculate Minimum Die: Multiply the thinnest material by eight. This is your minimum V-die size.
Calculate Maximum Die: Multiply the thickest material by eight. This is your maximum V-die size.
Fill the Gaps: Double the minimum size sequentially until you reach the maximum. For example, if your minimum is 0.25", your library should include 0.25", 0.5", 1.0", and 2.0" dies.
You must decide when to step away from standard broad punches. Standard profiles handle ninety percent of bracket work. However, complex geometries demand specialized shapes.

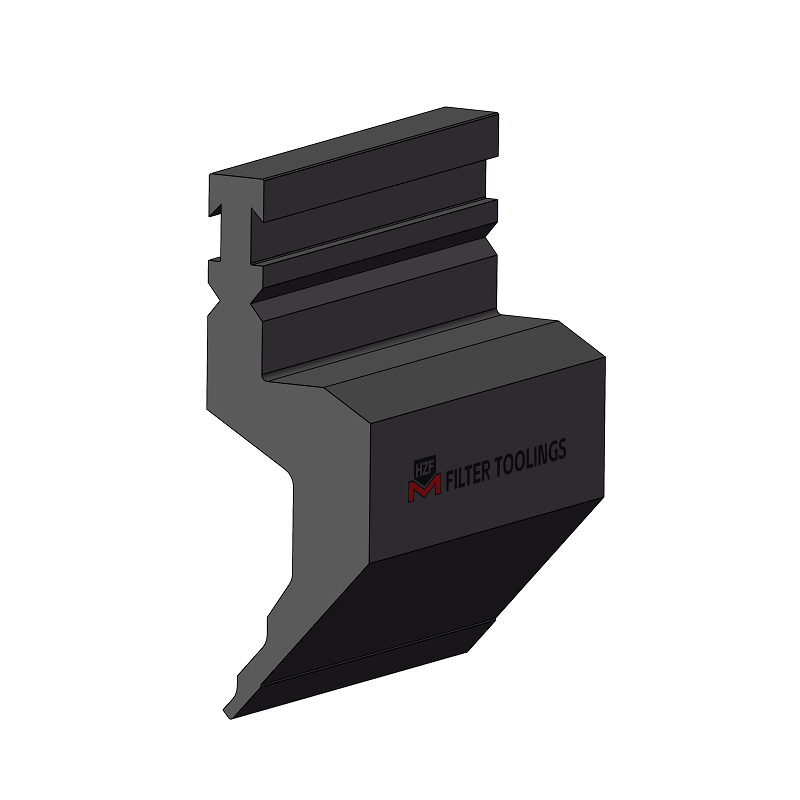

You should purchase Swan Neck punches for clearing U-profile flanges. Their curved bodies allow long return-flanges to fold inward without colliding with the ram. You should invest in Acute Angle punches (30° or less) for hemming preparations. You use these sharp tools to fold the metal to 30 degrees before flattening it completely with a hemming die.
Purchasing high-end equipment is a wasted investment without dedicated maintenance. Precision ground steel degrades rapidly in dirty environments.
You must mandate closed-cabinet storage for all dies. Storing them on open racks exposes them to shop dust and forklift debris. Implement regular cleaning schedules. Operators must apply proper lubrication to prevent micro-abrasions. Even minor surface rust on a punch tip will transfer marks onto every subsequent stainless steel part. Treat your dies like precision instruments rather than heavy iron blocks.
Selecting the right dies and punches is a calculated intersection of machine limits, material math, and process goals. You cannot guess your way to accurate angles. You must align your clamping systems, utilize the Rule of 8, and respect your equipment's open height constraints. Building a standardized library ensures long-term operational efficiency.
Audit your current scrap rates to identify specific bending failures.
Review your machine’s open height and stroke specifications.
Utilize an accurate tonnage calculator to verify safe working limits.
Finalize your hardware data before requesting quotes from manufacturers.
A: You can widen the V-die opening to lower the required tonnage. For example, moving from an 8x thickness die to a 10x or 12x die significantly reduces hydraulic strain. However, you must accept a slightly larger internal radius on your finished part.
A: American style features a traditional, smaller clamping footprint. European style offers a larger surface area for better stability during heavy bending. Wila (New Standard) provides advanced automatic clamping, auto-alignment features, and the fastest tool changeover speeds in the industry.
A: You should base replacement on regular visual inspections. Check the tool tips for flattening or micro-cracks. Measure the internal radius wear and watch for tolerance drift in your bent parts. High-quality hardened tools can last several years under normal conditions before requiring regrinding.
A: Stainless steel has a much higher tensile strength than mild steel. This creates a stronger spring back effect when pressure releases. You typically need a punch angled 1 to 2 degrees sharper (like 86° instead of 88°) to overbend the stainless steel successfully.
