Fabricators constantly balance part complexity against production costs. Choosing the wrong tooling either limits manufacturing capabilities or unnecessarily inflates capital expenditure. You need reliable solutions delivering precision without eroding profit margins. The decision between standard and custom profiles goes far beyond basic part geometry. It deeply involves production volume, setup times, machine compatibility, and long-term financial returns. Many shops struggle daily on the floor. They force basic tools into complex bending scenarios, causing severe bottlenecks and material waste.
This guide breaks down the technical and financial criteria required to evaluate your options thoroughly. We explore how to assess machine compatibility, calculate cycle-time reductions, and make an evidence-based procurement decision. You will learn to identify exact tipping points where specialized dies outperform off-the-shelf alternatives. Read on to discover which tooling path aligns best with your daily production demands and strategic goals.
Standard Tooling: Best for common geometries (90° bends, basic U-channels), low-to-medium volume runs, and immediate availability requirements.
Custom Tooling: Essential when part designs dictate specialized clearances, multiple bends in a single hit, or when eliminating secondary manufacturing operations justifies the upfront engineering cost.
Evaluation Core: The decision hinges on a measurable ROI equation: calculate whether the cycle-time reduction and scrap minimization of custom tooling offset its higher initial price and longer lead time.
Implementation Risk: Both standard and custom solutions must align strictly with your machine's tonnage limits and clamping style (e.g., European vs. American).
Procurement teams consistently face pressure to keep capital costs low. Everyday fabrication demands tools readily replaceable and widely applicable across diverse product lines. Here, standard press brake tooling serves as the reliable backbone of the modern shop floor. These off-the-shelf solutions include standard V-dies, acute angle punches, and standard goosenecks. They handle the vast majority of routine air bending and bottoming tasks.
Relying on standard tooling solves an immediate business problem. You avoid tying up cash in highly specialized assets. General fabrication shops handling diverse, low-volume orders thrive on this flexibility. Operators can swap standard dies between different jobs seamlessly. They maintain steady throughput without waiting on engineered solutions.
Several success criteria define when standard tools remain your best option. Evaluate these advantages:
Immediate Availability: Manufacturers keep common profiles in stock. You experience minimal lead times. Shops receive replacements almost immediately, keeping downtime to a minimum.
Lower Upfront Cost: Vendors produce these items in massive batches. Mass-produced dimensions mean significantly lower acquisition costs. This protects margins on low-volume prototype work.
Interchangeability: Accidents happen on the floor. When an operator crashes a machine, standard tooling shines. You easily replace damaged sections without halting production for weeks. Sectionalized standard tools allow operators to swap only the broken segment.
However, you must recognize the inherent limitations of this approach. Standard profiles become highly inefficient for complex geometries. When part prints demand tight clearances or deep boxes, standard tools force operators into awkward workarounds. Operators must perform multiple handling steps. They often move parts between separate machine setups. This dramatically increases labor time. It also introduces the severe risk of tolerance stacking, where tiny errors compound with each successive bend.
Common Mistake: Do not rely on standard gooseneck punches to clear exceptionally deep return flanges. Operators often try to "make it work" by shimming or altering the stroke. This damages the punch tip and compromises operator safety.
At a certain threshold, standard profiles start causing more problems than they solve. You notice part collisions during complex forming sequences. Operators fail to achieve specific, tight radii. Parts require far too many individual hits to complete. These issues lead directly to severe bottlenecks and unacceptable scrap rates. When standard tools bottleneck throughput, you hit the tipping point.
This scenario demands a shift toward engineered-to-order custom press brake tooling. Tooling engineers tailor these solutions precisely to your specific part prints. They analyze the exact bending sequence, material properties, and machine capabilities. They then design a tool eliminating collisions and streamlining the entire operation.
Transitioning to custom solutions unlocks powerful manufacturing capabilities. Assess these success criteria to validate your upgrade:
Complex Geometries: Custom tools clear deep returns effortlessly. They manage tight Z-bends or unusual hems in a single setup. Engineers design relief zones exactly where your part needs them.
Process Consolidation: You achieve multiple bends in one single stroke. Offset dies form two parallel bends simultaneously. This drastically reduces cycle time and material handling.
Quality Consistency: High-quality custom bending processing tooling minimizes operator intervention. Fewer touches mean fewer human errors. You improve repeatability dramatically on tight-tolerance parts.
Best Practice: Always involve operators when identifying the need for custom tools. They know exactly which parts require risky maneuvers or excessive stage bending. Their input ensures the custom tool actually solves the floor-level bottleneck.
Despite the benefits, custom implementation carries distinct risks. It requires precise engineering alignment from the start. A poorly designed custom tool can trap the formed part after bending. It might also exceed the machine's concentrated load capacity, leading to catastrophic equipment failure. You must work with trusted engineers who validate designs through rigorous simulation before cutting any steel.
Choosing the right tooling path requires a structured evaluation. You must analyze specific features against desired production outcomes. A feature-to-outcome matrix clarifies this decision. It removes guesswork and focuses on measurable operational impacts.
Production volume plays a defining role. High-volume runs amortize the cost of custom tools quickly. If you produce thousands of identical brackets weekly, saving ten seconds per part yields massive labor savings. Conversely, low-volume prototype work generally dictates standard tooling to protect margins. Investing heavily in a tool used only fifty times rarely makes financial sense.
Look beyond the press brake itself. Evaluate the impact on secondary operations. If a custom tool eliminates a downstream welding or assembly process, the return timeline shrinks dramatically. For example, forming a complex tube from sheet metal in one hit might eliminate three separate weld seams. The savings in welding labor easily justify the custom tool engineering fee.
Setup and teardown times heavily influence throughput. Custom tools designed for a specific part often reduce setup complexities. The operator loads one custom tool and runs the entire batch. Standard tools may require complex stage bending. The operator must set up multiple die stations across the bed, requiring precise alignment and significant trial-and-error.
Finally, consider tool material and hardening. Ensure evaluations compare equivalent durability. Whether choosing standard or custom, you need laser-hardened wear zones for high-tensile materials. Never sacrifice tool life simply because a profile is custom-made.
Evaluation Dimension | Standard Tooling Application | Custom Tooling Application |
|---|---|---|
Production Volume | Low-to-medium volume, diverse job shop work, prototyping. | High-volume runs, long-term contracts, dedicated product lines. |
Secondary Operations | Parts often require downstream welding or manual assembly. | Frequently eliminates welding or joining by forming complex shapes. |
Setup Complexity | High complexity for multi-bend parts (requires stage setups). | Low complexity (one tool dedicated to one specific profile). |
Initial Investment | Lower acquisition cost; readily available. | Higher acquisition cost; includes engineering and testing fees. |
Technical validation remains non-negotiable. Tooling choice must be dictated strictly by machine specifications, not just part prints. You cannot force a brilliantly designed tool into an incompatible press brake. Ignoring machine constraints leads to poor part quality, severe equipment damage, and significant safety hazards.

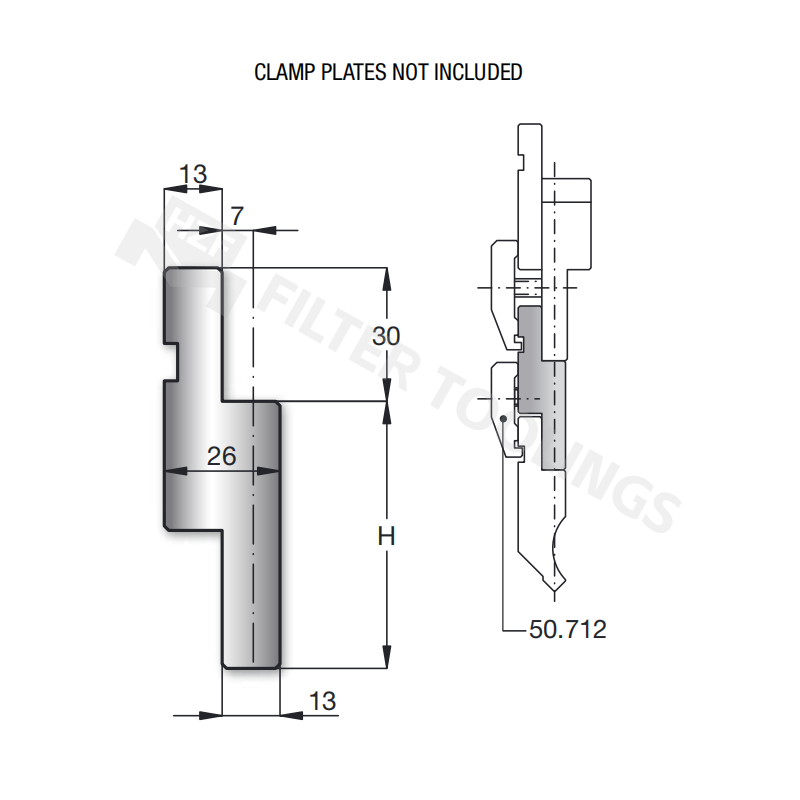

Begin by evaluating tooling styles. You must understand how the new choice integrates with your existing systems. Shops utilize various systems like European precision, American traditional, or WT styles. Adapting a custom tool to an incompatible clamping system introduces severe tolerance errors. While adapters exist, they consume valuable open height and introduce new deflection points. Always source press brake tooling matching your machine's native receiver directly.
Tonnage limits dictate what you can safely form. Custom multi-bend dies often require significantly higher tonnage per foot than simple air bending. Forming two bends simultaneously doubles the required force. Operators must calculate concentrated load limits meticulously. Exceeding these limits causes the ram to deform. It can also cause the tool to explode under pressure, throwing dangerous shrapnel across the shop floor. Always verify the maximum tonnage rating etched onto the tool body.
Clearance and stroke limitations frequently catch buyers off guard. Verify that your press brake has adequate open height. You need enough vertical space to accommodate larger custom tooling. Furthermore, the machine needs sufficient stroke length to allow part extraction post-bend. A custom tool might form a deep box perfectly, but if the ram cannot retract high enough, the box remains trapped around the punch.
Common Mistake: Failing to account for material springback during the tool design phase. Different materials require different punch angles to overbend the part. Always provide exact material specifications to your tooling engineer.
Making the right tooling investment requires a logical, step-by-step framework. You must transition from guessing to calculating. Follow these precise steps to evaluate your part prints and select the optimal tooling strategy.
Step 1: Audit the Part Print. Start by examining the 3D CAD model or physical print. Identify all potential collision points during the bending sequence. Note the required radii carefully. Assess the material springback characteristics based on yield strength. Determine if standard profiles can physically clear the flanges at every stage of the bend.
Step 2: Conduct a Time Study. Compare the estimated cycle time using standard staging versus a single custom hit. Time a skilled operator setting up and running the part with standard dies. Document the minutes spent on multiple hits, material flipping, and tool changes. Compare this baseline against the projected cycle time of a specialized custom setup.
Step 3: Calculate the Financial Return. Evaluate the upfront investment against long-term labor savings. Factor in custom tool engineering fees and lead times. Weigh this against standard tool costs combined with increased labor and setup hours. Determine how many parts you must run before the custom tool pays for itself.
Step 4: Engage Tooling Engineers Early. Do not finalize your part design before consulting experts. Provide CAD models and precise machine specs to tooling manufacturers. Request a formal feasibility study. They run simulation software to identify collision risks and tonnage requirements before manufacturing begins.
Next-Step Action: Compile a shortlist of trusted vendors. Look for partners who offer highly transparent tonnage ratings. They must provide verifiable hardening specifications. Insist they require your formal sign-off on interference checks and bend simulations prior to production.
Standard press brake tooling remains the fundamental backbone of general fabrication. It successfully prioritizes speed, flexibility, and upfront cost control. Custom tooling operates as a highly strategic asset. Engineers design it specifically to solve stubborn operational bottlenecks and drastically reduce per-part labor costs on high-yield production runs.
Do not view tooling purely as a disposable consumable. You must evaluate it as a critical process variable determining your ultimate profitability. If standard profiles force your operators into unsafe workarounds or endless setup times, change your approach. Invest in an engineering consultation. Calculate the direct financial return of implementing a custom solution. By matching the right tool geometry to your specific production volume, you protect margins, ensure operator safety, and elevate overall manufacturing quality.
A: Yes, "modified standard" serves as a practical middle-ground approach. Engineers take standard off-the-shelf tools and cut, relieve, or adjust them to fit specific needs. It saves significant engineering time compared to starting from scratch. However, modifying standard tools has strict limitations regarding maximum tonnage and overall structural integrity.
A: Depending on geometric complexity, material testing requirements, and current vendor backlog, lead times generally range from 3 to 8 weeks. This timeframe includes the necessary upfront design approval, digital simulation, and rigorous interference testing before manufacturing.
A: No. Reputable tooling manufacturers successfully engineer custom profiles for absolutely any clamping style. While they adapt the tool body to your geometry, they machine the tang to match your specific machine's receiver. Occasional specialized adapters may be required.
A: The tooling manufacturer must provide a strict required tonnage-per-foot calculation. They base this entirely on your specific material type, tensile strength, and thickness. You must cross-reference this calculation directly with your brake’s maximum bending capacity and concentrated load limits.
