Common Press Brake Tooling Problems In Sheet Metal Bending

Ignoring tooling degradation carries a massive hidden price tag on the factory floor. Increased scrap rates, sudden machine downtime, and compromised structural integrity of finished parts quickly erode production margins. Every scrapped blank represents lost labor and wasted material. Even the most advanced manufacturing setups face these exact issues daily. Modern CNC press brakes offer extreme precision. However, output quality remains entirely dependent on the condition and selection of the tooling. A flawless machine program simply cannot compensate for physically deformed punches or heavily worn dies. You must address the physical contact points first. This guide provides a clear diagnostic framework to identify the root causes of common bending defects. You will learn practical methods to differentiate between minor calibration errors and catastrophic tool failures. Furthermore, we outline concrete evaluation criteria for upgrading or replacing your setup effectively.

Key Takeaways

• Inconsistent bend angles and part galling are primary indicators of irreversible press brake die wear requiring immediate replacement.

• Exceeding tonnage limits or using incorrect V-die ratios are the leading causes of catastrophic press brake punch damage.

• Upgrading to specialized or custom tooling often yields a higher ROI than repeatedly modifying standard tools for complex or non-standard profiles.

• Evaluating a tooling replacement requires analyzing setup times, material compatibility, and safety compliance.

Diagnosing Premature Press Brake Die Wear and Punch Damage

Unplanned downtime and wasted material consistently disrupt operations. Companies lose thousands when operating compromised tools. Operators often assume the machine requires recalibration. They adjust parameters repeatedly. However, physical tool degradation causes most angular inconsistencies. You must identify these physical failures early to prevent cascading production delays.

Visual and Operational Symptoms

Physical inspection reveals the true condition of your equipment. The most common sign of press brake die wear involves radius flattening. The V-die shoulders lose their precise geometry over thousands of cycles. This flattening alters the contact point during the bend. It changes the required stroke depth unpredictably. Galling and scoring on the die shoulders present another severe symptom. Material from the sheet transfers onto the die surface. This buildup creates friction. Friction causes inconsistent springback and leaves unsightly drag marks on finished parts.

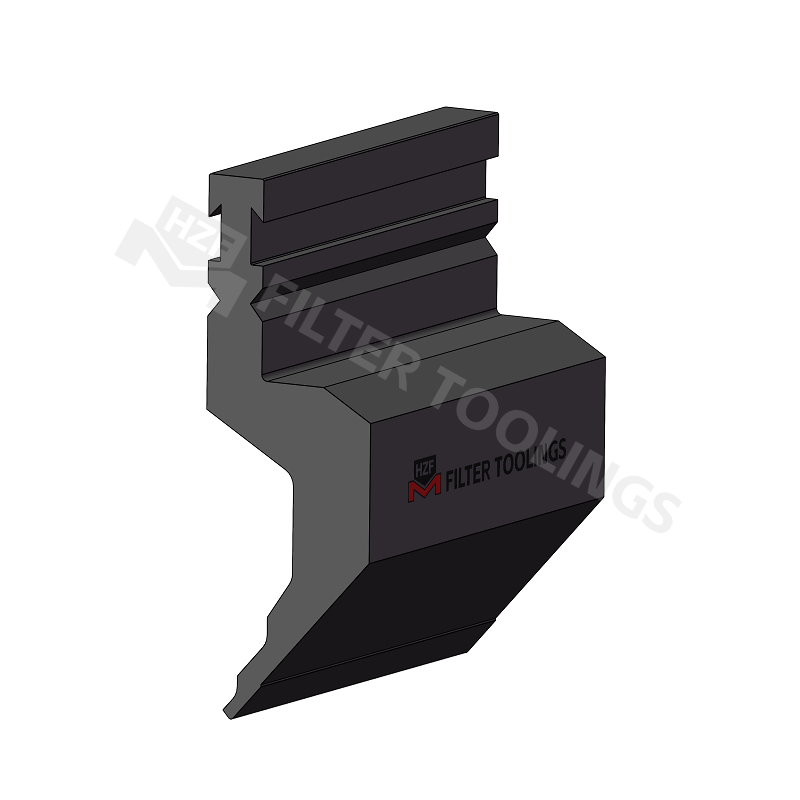

Punch degradation manifests differently but causes equal disruption. You should regularly check for press brake punch damage. Tip deformation occurs when forming materials harder than the tool rating. The sharp radius flattens or mushrooms outwards. Micro-cracking often develops along the working edge due to fatigue stress. Shank distortion happens under extreme loads. A bent shank prevents the tool from seating properly in the upper beam. This misalignment creates dangerous off-center loading scenarios.

Root Causes vs. Calibration Errors

You must differentiate between actual tool failure and simple calibration issues. Machine calibration errors require operational adjustments. The operator might need to update the material thickness setting in the CNC controller. They might need to adjust the crowning system to compensate for beam deflection. These steps do not require purchasing new equipment.

Physical tool failure requires immediate procurement. Ignoring tonnage charts accelerates this failure rapidly. Many facilities mistakenly apply air bending tonnage calculations to bottoming or coining operations. Air bending requires relatively low force. The punch only presses the material into the V-opening without touching the bottom. Bottoming forces the material against the die faces, demanding three to five times more tonnage. Coining demands up to ten times the air bending tonnage. Using standard air bending tools for bottoming operations guarantees catastrophic structural failure.

Managing Feature Deformation in Sheet Metal Bending Tools

Feature deformation introduces high scrap rates into production. Bending parts with holes, slots, or cutouts near the bend line causes massive distortion. The metal stretches and pulls during the forming process. This tension warps any void located too close to the stress zone. Long, narrow parts present a different challenge. They often bow or twist along their length. Standard forming methods struggle to maintain straightness on these profiles.

Operational adjustments provide the first line of defense. You can increase the V-die opening size. A larger opening distributes the bending stress over a wider area. This reduces localized drawing. Modifying the flat pattern also helps. Engineers can add relief cuts around the problematic holes. These small incisions isolate the hole from the stretching forces.

Advanced tooling solutions eliminate the root cause entirely. Implementing specific sheet metal bending tools protects delicate features. Rotational dies feature rotating cylindrical inserts along the shoulders. The inserts rotate inward as the punch descends. This action folds the material upward. It eliminates the dragging friction over the die shoulders. Wing-bend dies operate on a similar folding principle. Urethane pads act as a hydraulic medium. They force the material upward around the punch without marring the surface.

Implementing specialized solutions carries specific implementation risks:

• Operators must recalculate required tonnage, as urethane pads demand significantly higher pressure.

• Backgauge positioning requires reprogramming to accommodate the unique geometry of rotational dies.

• Specialized inserts require stricter maintenance schedules to prevent debris buildup in moving parts.

• Springback values change dramatically compared to standard air bending processes.

Standard vs. Custom Press Brake Tooling: Evaluation Criteria

Production requirements frequently outgrow standard catalog options. You face a critical decision when standard profiles fail to produce acceptable parts. Standard tools work perfectly for basic 90-degree bends or simple offsets. However, complex geometries demand a different approach. You must evaluate the true cost of forcing standard tools to perform non-standard tasks.

Volume and scalability dictate the financial viability of custom solutions. A short production run rarely justifies engineering bespoke tools. You simply tolerate the slower manual process. However, high-volume production changes the math entirely. If custom tooling saves 30 seconds per bend on a 10,000-piece run, the upfront cost pays for itself rapidly.

Complexity serves as the second evaluation dimension. Deep box bends require exceptionally tall punches with specific relief areas. Off-center loads risk damaging the machine frame without properly balanced custom dies. Extreme tight-tolerance requirements characterize aerospace and medical enclosure manufacturing. Standard tools cannot reliably hold tolerances within fractions of a degree on exotic alloys.

An evidence-oriented assessment clarifies the decision. You must compare the hidden costs of "making do" against the upfront capital expenditure of custom engineering. Multiple setups increase handling time. Manual rework adds labor costs. Higher defect rates waste expensive materials.

Emergency Workarounds and Temporary Tooling Strategies

Sudden tooling failures halt production instantly. Tight-turnaround prototyping demands immediate solutions. Waiting weeks for a replacement punch is rarely an option. Production teams need reliable emergency strategies to keep the machine running. You can implement temporary fixes to bridge the gap until permanent replacements arrive.

Using 3D-printed inserts offers a modern solution for specific scenarios. Materials like PLA, PETG, and tough Nylon withstand surprising amounts of compressive force. You can print a custom punch or V-die in a few hours. These printed tools work exceptionally well for low-tonnage applications. They excel at forming thin-gauge aluminum or creating soft prototype bends. Applying protective films or urethane tape provides another vital strategy. When standard polished dies begin scratching delicate materials, a layer of heavy-duty urethane tape acts as an emergency barrier. It prevents surface marking without altering the bend geometry significantly.

You must strictly define the limitations of these temporary strategies. Temporary solutions do not replace hardened steel for continuous production runs. They degrade rapidly. 3D-printed plastics lose their dimensional stability after only a few dozen cycles. Furthermore, you face severe safety risks if you exceed the material limits. Shattering non-standard materials under high tonnage endangers operators. Plastic shrapnel can eject from the forming area at high speeds. Always use these methods cautiously. Restrict them to highly controlled, low-pressure forming tasks.

Framework for Evaluating and Upgrading Your Tooling Setup

Structuring the procurement process ensures long-term operational success. Buying new press brake tooling requires more than matching a catalog number. You must build a framework to evaluate system compatibility, material science, and daily operational efficiency.

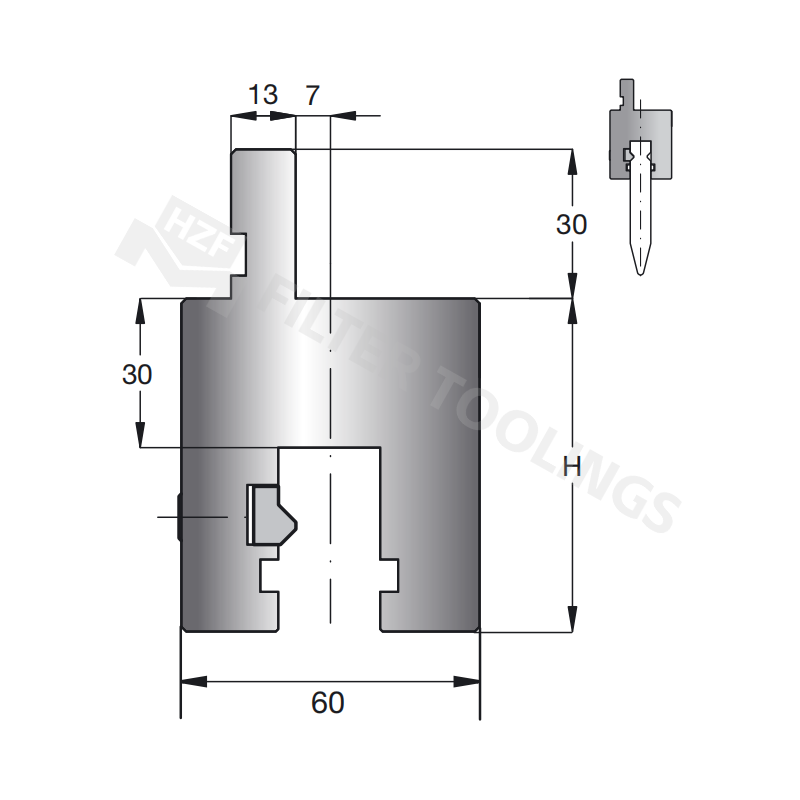

System compatibility forms the foundation of any upgrade. Press brakes utilize specific mounting styles. European styles, such as Amada and Promecam, use a distinct tang configuration. Wila and Trumpf systems utilize a highly precise push-button seating mechanism. American styles rely on a simple, traditional tang. You must assess the cost of using adapters versus buying native tooling. Adapters introduce a secondary tolerance variable. They can stack errors and reduce overall bending accuracy.

Hardening technologies dictate the lifespan of your investment. You must evaluate the surface treatment based on the materials being formed. Standard mild steel requires basic hardening. However, abrasive materials like stainless steel or diamond-tread plate demand superior wear resistance.

Setup efficiency dramatically impacts daily output. Push-button precision mechanisms allow operators to click tools into place instantly. Segmented tooling eliminates the need to cut long punches manually. Operators simply combine pre-cut segments to achieve the desired length. Self-seating mechanisms ensure the tools align perfectly without requiring a test bump.

Guide your final decision using strict shortlisting logic:

1. Audit your current scrap logs to identify which specific bends cause the highest failure rates.

2. Calculate the exact maximum tonnage required for the thickest and hardest materials in your facility.

3. Request empirical cycle-time data from tooling suppliers to verify their setup reduction claims.

4. Verify physical clearance limits on your machine, including daylight opening and stroke length.

Conclusion

Press brake punches and dies represent critical consumable assets, not lifetime fixtures. Regular physical audits prevent minor wear from escalating into catastrophic part failures. Implementing a structured evaluation framework ensures your equipment matches the specific demands of your production materials. You must address deformation issues proactively rather than relying on constant CNC recalibration.

Conduct a localized tooling inspection this week. Document any recurring deformation issues or unusual drag marks on your finished parts. Measure your V-die shoulder radii against their original specifications. Finally, consult with a reputable tooling manufacturer to assess the operational value of upgrading your most heavily used profiles.

FAQ

Q: How often should press brake tooling be inspected or replaced?

A: Perform a brief visual inspection daily before starting production. Conduct a thorough dimensional inspection monthly using calipers and radius gauges. Replacement frequency depends heavily on operational variables. Forming abrasive materials like stainless steel requires more frequent replacements. Running parts near the maximum tonnage limits also drastically reduces tool lifespan.

Q: Can you repair press brake punch damage, or must it be replaced?

A: You should almost always replace a damaged punch. Remachining a hardened tool alters its overall height and precise tolerances. This creates inconsistencies across the machine bed, especially when mixing old and new tool segments. The technical limitations of repairing hardened steel make replacement the safer, more accurate choice.

Q: What is the minimum distance a hole should be from the bend line to avoid deformation?

A: The standard engineering rule dictates the distance should be at least 2.5 to 3 times the material thickness, plus the bend radius. Placing a hole closer guarantees stretching and distortion. However, utilizing specialized equipment like rotational dies or urethane pads allows you to bypass this rule entirely.

Q: Why is my sheet metal cracking during the bending process?

A: Cracking typically points to a tooling mismatch rather than a material defect. The punch radius is likely too sharp for the specific material thickness. This concentrates extreme stress along the bend line, exceeding the material's elasticity. Bending parallel to the material grain direction also exacerbates cracking risks.
